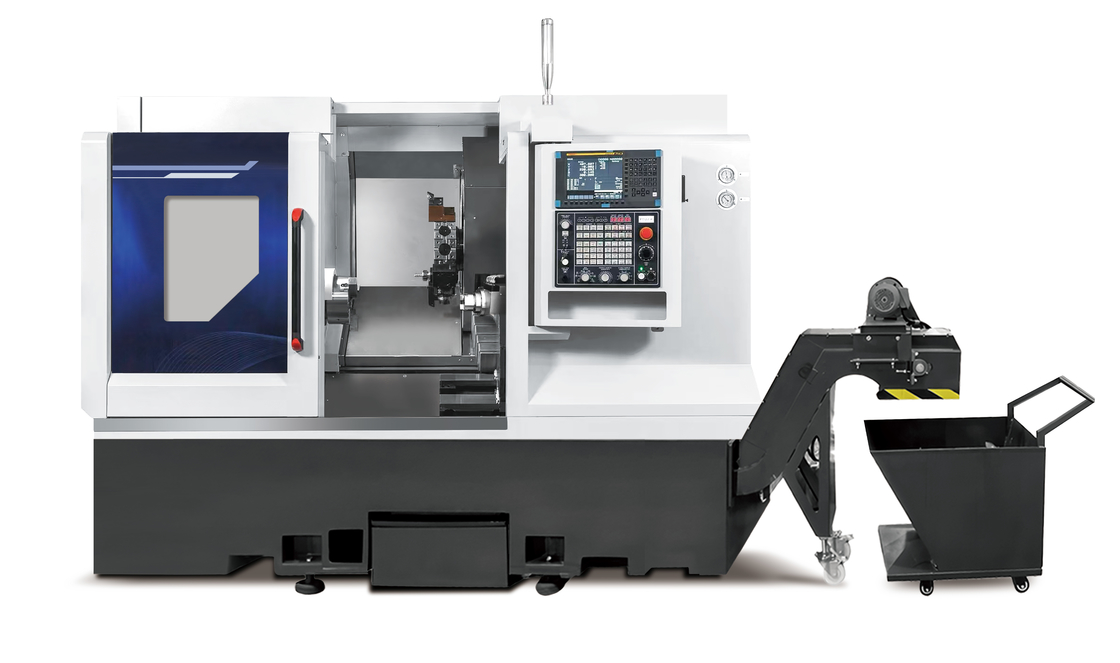

CNC LATHE
●EFFICIENT, HIGH-VOLUME, HIGH-PRECISION MACHINING OF ROTATING BODY PARTS
●10.4" color TFT LCD monitor, suitable for the working environment in the car, the anti-reflective tempered glass on the surfaceof the screen can play a protective role and better visilbility, With a built in UsB interface, users can use a Us8 memory deviceor an external disk to transfer data. The memory lock function prevents unauthorized personnel from accidentally altering oediting programs, and can also be used to lock unset, parameter, bias settings, and macros.
TECHNICAL PARAMETER
| Machine model | unit | GL150 row of knives | GL150 turret | GL150 Turning & Milling | |
| Spindle | Spindle nose form | / | A2-5 | A2-5 | A2-5 |
| Spindle bore diameter | mm | ⊘56 | ⊘56 | ⊘56 | |
| Maximum spindle speed | rpm | 4000 | 4500 | 4500 | |
| Three-jaw chuck clamping capability | mm | 6''/⊘150 | 6''/⊘150 | 6''/⊘150 | |
| Tie rod action form | / | Hydraulic | Hydraulic | Hydraulic | |
| Drive system | Spindle motor power | kw | 5.5/7.5 | 5.5/7.5 | 5.5/7.5 |
| X-axis servo motor power | kw | 1.5 | 1.5 | 1.5 | |
| Z-axis servo motor power | kw | 1.5 | 1.5 | 1.5 | |
| Processing range | Maximum swing diameter of the bed | mm | ⊘400 | ⊘430 | ⊘430 |
| Maximum workpiece length | mm | 380 | 380 | 380 | |
| Maximum workpiece diameter | mm | ⊘120 | ⊘200 | ⊘200 | |
| Maximum tie rod through hole diameter | mm | ⊘40 | ⊘46 | ⊘46 | |
| Rotation diameter on the pallet | mm | ||||
| X/Z axis | X-axis travel | mm | 400 | 200 | 200 |
| Z-axis travel | mm | 400 | 400 | 330 | |
| Y-axis travel | mm | ||||
| X/Z axis rapid traverse rate | m/min | 18/30 | 18/30 | 18/30 | |
| X/Z axis tracks | mm | 25/25 | 30/30 | 30/30 | |
| X/Z axis screw | mm | 2510/2510 | 3210/3210 | 3210/3210 | |
| X/Z-axis positioning accuracy | |||||
| X/Z-axis repeated positioning accuracy | |||||
| precision | Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
| Repeatability accuracy | mm | ±0.003 | ±0.003 | ±0.003 | |
| Turret | Turret center height | mm | 63 | 80 | 80 |
| Turret drive form | / | Optional 63 turret | Servo turret | Power turret | |
| Number of knife positions | T | 8 | 8/12 | 12 | |
| Square knife holder specifications | mm | 20 | 25 | 25 | |
| Boring inverted seat specifications | mm | ⊘20 | ⊘32 | ⊘32 | |
| Power knife holder specifications | / | / | / | BMT40 | |
| The highest number of rotations of the power knife holder | rpm | / | / | 4000 | |
| Tool change time (T-T) | S | / | 0.3 | 0.3 | |
| Tail seat | Ontology movement mode | / | |||
| Top specifications | / | ||||
| ltinerary | mm | ||||
| Length of the top-held workpiece | mm | ||||
| Core axis travel | mm | ||||
| Watertank | Cutting water tank capacity | L | 80 | 80 | 80 |
| Cutting water pressure | bar | 0.8 | 2 | 2 | |
| Electricity demand | voltage | Vac | 380±10% | 380±10% | 380±10% |
| power | kw | 15 | 15 | 15 | |
| Number of phases | phase | 3 | 3 | 3 | |
| frequency | Hz | 50 | 50 | 50 | |
| Machine Specifications | Machine size | mm | 1900*1450*1650 | 1900*1450*1600 | 1900*1450*1600 |
| Machine weight | kg | 2000 | 2300 | 2300 | |
| Machine model | unit | GL200 | GL200M | GL200MY | |
| Spindle | Spindle nose form | / | A2-6 | A2-6 | A2-6 |
| Spindle bore diameter | mm | ⊘61 | ⊘61 | ⊘61 | |
| Maximum spindle speed | rpm | 4500 | 4500 | 4500 | |
| Three-jaw chuck clamping capability | mm | 8''/⊘210 | 8''/⊘210 | 8''/⊘210 | |
| Tie rod action form | / | Hydraulic | Hydraulic | Hydraulic | |
| Drive system | Spindle motor power | kw | 11/15 | 11/15 | 11/15 |
| X-axis servo motor power | kw | 1.8 | 1.8 | 1.8 | |
| Z-axis servo motor power | kw | 1.8 | 1.8 | 1.8 | |
| Processing range | Maximum swing diameter of the bed | mm | ⊘500 | ⊘500 | ⊘500 |
| Maximum workpiece length | mm | 460 | 420 | 420 | |
| Maximum workpiece diameter | mm | ⊘280 | ⊘260 | ⊘260 | |
| Maximum tie rod through hole diameter | mm | ⊘52 | ⊘52 | ⊘52 | |
| Rotation diameter on the pallet | mm | 220 | 220 | 220 | |
| X/Z axis | X-axis travel | mm | 200 | 200 | 200 |
| Z-axis travel | mm | 480 | 450 | 400 | |
| Y-axis travel | mm | / | / | ±50 | |
| X/Z axis rapid traverse rate | m/min | 18/30 | 18/30 | 18/30 | |
| X/Z axis tracks | mm | 30/30 | 30/30 | 30/30 | |
| X/Z axis screw | mm | 3210/3210 | 3210/3210 | 3210/3210 | |
| X/Z-axis positioning accuracy | |||||
| X/Z-axis repeated positioning accuracy | |||||
| precision | Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
| Repeatability accuracy | mm | ±0.003 | ±0.003 | ±0.003 | |
| Turret | Turret center height | mm | 80 | 80 | 165 |
| Turret drive form | / | Servo turret | Power turret | Y power turret | |
| Number of knife positions | T | 8/12 | 12 | 12 | |
| Square knife holder specifications | mm | 25 | 20/25 | 20/25 | |
| Boring inverted seat specifications | mm | ⊘32/⊘40 | ⊘32 | ⊘32 | |
| Power knife holder specifications | / | BMT45 | BMT45 | BMT45 | |
| The highest number of rotations of the power knife holder | rpm | 4000 | 4000 | 4000 | |
| Tool change time (T-T) | S | 0.3 | 0.3 | 0.3 | |
| Tail seat | Ontology movement mode | / | Hydraulics + Mechanical | Hydraulics + Mechanical | Hydraulics + Mechanical |
| Top specifications | / | MT4 | MT4 | MT4 | |
| ltinerary | mm | / | 540 | 540 | |
| Length of the top-held workpiece | mm | / | / | / | |
| Core axis travel | mm | / | / | / | |
| Watertank | Cutting water tank capacity | L | 150 | 150 | 150 |
| Cutting water pressure | bar | 2.3 | 2.3 | 2.3 | |
| Electricity demand | voltage | Vac | 380±10% | 380±10% | 380±10% |
| power | kw | 25 | 25 | 25 | |
| Number of phases | phase | 3 | 3 | 3 | |
| frequency | Hz | 50 | 50 | 50 | |
| Machine Specifications | Machine size | mm | 2070*1580*1750 | 2070*1580*1750 | 2070*1580*1750 |
| Machine weight | kg | 3100 | 3100 | 3100 | |
| Machine model | unit | GL250 | GL250M | GL250MY | |
| Spindle | Spindle nose form | / | A2-8 | A2-8 | A2-8 |
| Spindle bore diameter | mm | ⊘87 | ⊘87 | ⊘87 | |
| Maximum spindle speed | rpm | 3500 | 3500 | 3500 | |
| Three-jaw chuck clamping capability | mm | 10''/⊘250 | 10''/⊘250 | 10''/⊘250 | |
| Tie rod action form | / | Hydraulic | Hydraulic | Hydraulic | |
| Drive system | Spindle motor power | kw | 15/18.5 | 15/18.5 | 15/18.5 |
| X-axis servo motor power | kw | 1.8 | 1.8 | 1.8 | |
| Z-axis servo motor power | kw | 3 | 3 | 3 | |
| Processing range | Maximum swing diameter of the bed | mm | ⊘650 | ⊘650 | ⊘650 |
| Maximum workpiece length | mm | 630 | 630 | 630 | |
| Maximum workpiece diameter | mm | ⊘480 | ⊘480 | ⊘480 | |
| Maximum tie rod through hole diameter | mm | ⊘75 | ⊘75 | ⊘75 | |
| Rotation diameter on the pallet | mm | ⊘430 | ⊘430 | ⊘430 | |
| X/Z axis | X-axis travel | mm | 280 | 280 | 280 |
| Z-axis travel | mm | 650 | 650 | 650 | |
| Y-axis travel | mm | / | / | ±50 | |
| X/Z axis rapid traverse rate | m/min | 18/24 | 18/24 | 18/24 | |
| X/Z axis tracks | mm | 45/45 | 45/45 | 45/45 | |
| X/Z axis screw | mm | 3610/4010 | 3610/4010 | 3610/4010 | |
| X/Z-axis positioning accuracy | |||||
| X/Z-axis repeated positioning accuracy | |||||
| precision | Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
| Repeatability accuracy | mm | ±0.003 | ±0.003 | ±0.003 | |
| Turret | Turret center height | mm | 100 | 100 | 165 |
| Turret drive form | / | Servo turret | Power turret | Y power turret | |
| Number of knife positions | T | 12 | 12 | 12 | |
| Square knife holder specifications | mm | 25 | 25 | 25 | |
| Boring inverted seat specifications | mm | ⊘40 | ⊘40 | ⊘40 | |
| Power knife holder specifications | / | / | BMT55 | BMT55 | |
| The highest number of rotations of the power knife holder | rpm | / | 4000 | 4000 | |
| Tool change time (T-T) | S | 0.3 | 0.3 | 0.3 | |
| Tail seat | Ontology movement mode | / | Hydraulics + Mechanical | Hydraulics + Mechanical | Hydraulics + Mechanical |
| Top specifications | / | MT5 | MT5 | MT5 | |
| ltinerary | mm | 680 | 680 | 680 | |
| Length of the top-held workpiece | mm | 80/680 | 80/680 | 80/680 | |
| Core axis travel | mm | 100 | 100 | 100 | |
| Watertank | Cutting water tank capacity | L | 200 | 200 | 200 |
| Cutting water pressure | bar | 3 | 3 | 3 | |
| Electricity demand | voltage | Vac | 380±10% | 380±10% | 380±10% |
| power | kw | 25 | 25 | 25 | |
| Number of phases | phase | 3 | 3 | 3 | |
| frequency | Hz | 50 | 50 | 50 | |
| Machine Specifications | Machine size | mm | 2800*1800*1960 | 2800*1800*1960 | 2800*1800*2100 |
| Machine weight | kg | 4800 | 5000 | 5000 | |
| Machine model | unit | GL250-10 | GL250-10M | GL250-10MY | |
| Spindle | Spindle nose form | / | A2-8 | A2-8 | A2-8 |
| Spindle bore diameter | mm | ⊘87 | ⊘87 | ⊘87 | |
| Maximum spindle speed | rpm | 3500.00 | 3500.00 | 3500.00 | |
| Three-jaw chuck clamping capability | mm | 10"/⊘250 | 10"/⊘250 | 10"/⊘250 | |
| Tie rod action form | / | Hydraulic | Hydraulic | Hydraulic | |
| Drive system | Spindle motor power | kw | 15/18.5 | 15/18.5 | 15/18.5 |
| X-axis servo motor power | kw | 1.80 | 1.80 | 1.80 | |
| Z-axis servo motor power | kw | 3.00 | 3.00 | 3.00 | |
| Processing range | Maximum swing diameter of the bed | mm | ⊘680 | ⊘680 | ⊘680 |
| Maximum workpiece length | mm | 1100.00 | 100.00 | 100.00 | |
| Maximum workpiece diameter | mm | ⊘500 | ⊘500 | ⊘500 | |
| Maximum tie rod through hole diameter | mm | ⊘75 | ⊘75 | ⊘75 | |
| Rotation diameter on the pallet | mm | ⊘430 | ⊘430 | ⊘430 | |
| X/Z axis | X-axis travel | mm | 280.00 | 280.00 | 280.00 |
| Z-axis travel | mm | 1120.00 | 1120.00 | 1120.00 | |
| Y-axis travel | mm | / | / | ±50 | |
| X/Z axis rapid traverse rate | m/min | 18/24 | 18/24 | 18/24 | |
| X/Z axis tracks | mm | 45/45 | 4545 | 45145 | |
| X/Z axis screw | mm | 3610/4010 | 3610/4010 | 3610/4010 | |
| X/Z-axis positioning accuracy | 0.01/1000 | 0.01/1000 | 0.01/1000 | ||
| X/Z-axis repeated positioning accuracy | <±0.005 | <±0.005 | ±0.005 | ||
| precision | Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
| Repeatability accuracy | mm | ±0.003 | ±0.003 | ±0.003 | |
| Turret | Turret center height | mm | 100.00 | 100.00 | 165.00 |
| Turret drive form | / | Servo turret | Power turret | Y power turret | |
| Number of knife positions | T | 8/12 | 12.00 | 12.00 | |
| Square knife holder specifications | mm | 25.00 | 25.00 | 25.00 | |
| Boring inverted seat specifications | mm | ⊘32/⊘40 | ⊘32/⊘40 | ⊘32/⊘40 | |
| Power knife holder specifications | / | / | BMT55 | BMT55 | |
| The highest number of rotations of the power knife holder | rpm | 4000.00 | 4000.00 | ||
| Tool change time (T-T) | S | 0.30 | 0.30 | 0.30 | |
| Tail seat | Ontology movement mode | / | Hydraulics + Mechanical | Hydraulics + Mechanical | Hydraulics + Mechanical |
| Top specifications | / | MT5 | MT5 | MT5 | |
| ltinerary | mm | 1180.00 | 1180.00 | 1180.00 | |
| Length of the top-held workpiece | mm | 80/1180 | 80/1180 | 80/1180 | |
| Core axis travel | mm | 100.00 | 100.00 | 100.00 | |
| Watertank | Cutting water tank capacity | L | 250.00 | 250.00 | 250.00 |
| Cutting water pressure | bar | 2.30 | 2.30 | 2.30 | |
| Electricity demand | voltage | Vac | 380±10% | 380±10% | 380±10% |
| power | kw | 35.00 | 35.00 | 35.00 | |
| Number of phases | phase | 3.00 | 3.00 | 3.00 | |
| frequency | Hz | 50.00 | 50.00 | 50.00 | |
| Machine Specifications | Machine size | mm | 3360*1830*1960 | 3360*1830*1960 | 3360*830*2100 |
| Machine weight | kg | 6500.00 | 6500.00 | 6500.00 | |
| Machine model | unit | GL250-15 | GL250-15M | GL250-15MY | |
| Spindle | Spindle nose form | / | A2-8 | A2-8 | A2-8 |
| Spindle bore diameter | mm | ⊘87 | ⊘87 | ⊘87 | |
| Maximum spindle speed | rpm | 3500.00 | 3500.00 | 3500.00 | |
| Three-jaw chuck clamping capability | mm | 10"/⊘250 | 10"/⊘250 | 10"/⊘250 | |
| Tie rod action form | / | Hydraulic | Hydraulic | Hydraulic | |
| Drive system | Spindle motor power | kw | 15/18.5 | 15/18.5 | 15/18.5 |
| X-axis servo motor power | kw | 1.80 | 1.80 | 3.00 | |
| Z-axis servo motor power | kw | 3.00 | 3.00 | 3.00 | |
| Processing range | Maximum swing diameter of the bed | mm | ⊘680 | ⊘680 | ⊘680 |
| Maximum workpiece length | mm | 1500.00 | 1500.00 | 1500.00 | |
| Maximum workpiece diameter | mm | ⊘500 | ⊘500 | ⊘500 | |
| Maximum tie rod through hole diameter | mm | ⊘75 | ⊘75 | ⊘75 | |
| Rotation diameter on the pallet | mm | ⊘430 | ⊘430 | ⊘430 | |
| X/Z axis | X-axis travel | mm | 280.00 | 280.00 | 280.00 |
| Z-axis travel | mm | 1600.00 | 1600.00 | 1600.00 | |
| Y-axis travel | mm | / | / | ±50 | |
| X/Z axis rapid traverse rate | m/min | 18/24 | 1824 | 18/24 | |
| X/Z axis tracks | mm | 45/45 | 45/45 | 45/45 | |
| X/Z axis screw | mm | 3610/4010 | 3610/4010 | 3610/4010 | |
| X/Z-axis positioning accuracy | 0.01/1000 | 0.01000 | 0.01000 | ||
| X/Z-axis repeated positioning accuracy | ≤±0.005 | ≤±0.005 | ≤±0.005 | ||
| precision | Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
| Repeatability accuracy | mm | ±0.003 | ±0.003 | ±0.003 | |
| Turret | Turret center height | mm | 100.00 | 100.00 | 165.00 |
| Turret drive form | / | Servo turret | Power turret | Y power turret | |
| Number of knife positions | T | 8/12 | 12.00 | 12.00 | |
| Square knife holder specifications | mm | 25.00 | 25.00 | 25.00 | |
| Boring inverted seat specifications | mm | ⊘32/⊘40 | ⊘32/⊘40 | ⊘32/⊘40 | |
| Power knife holder specifications | / | / | BMT55 | BMT55 | |
| The highest number of rotations of the power knife holder | rpm | / | 4000.00 | 4000.00 | |
| Tool change time (T-T) | S | 0.30 | 0.30 | 0.30 | |
| Tail seat | Ontology movement mode | / | Hydraulics + Mechanical | Hydraulics + Mechanical | Hydraulics + Mechanical |
| Top specifications | / | MT5 | MT5 | MT5 | |
| ltinerary | mm | 1580.00 | 1580.00 | 1580.00 | |
| Length of the top-held workpiece | mm | 80/1580 | 80/1580 | 80/1580 | |
| Core axis travel | mm | 100.00 | 100.00 | 100.00 | |
| Watertank | Cutting water tank capacity | L | 300.00 | 300.00 | 300.00 |
| Cutting water pressure | bar | 2.30 | 2.30 | 2.30 | |
| Electricity demand | voltage | Vac | 380±10% | 380±10% | 380±10% |
| power | kw | 35.00 | 35.00 | 35.00 | |
| Number of phases | phase | 3.00 | 3.00 | 3.00 | |
| frequency | Hz | 50.00 | 50.00 | 50.00 | |
| Machine Specifications | Machine size | mm | 3860*1830*1960 | 3860*1830*1960 | 3860*1830*2100 |
| Machine weight | kg | 7500.00 | 7500.00 | 750000 | |
