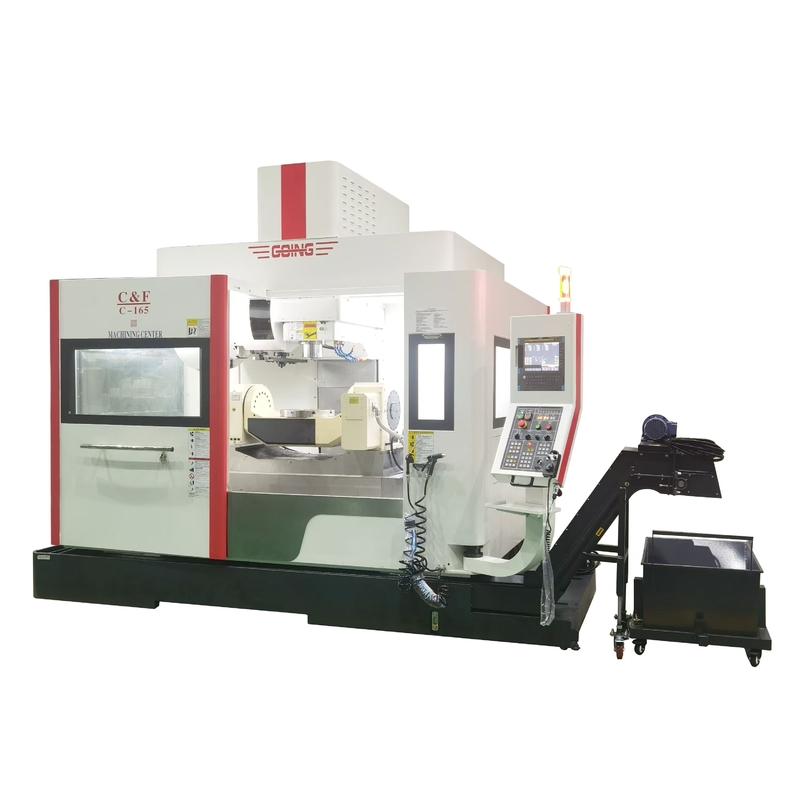

●The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability
●Integrated screw base and motor base to ensure high rigidity and stability
●Suitable for aerospace, high precision mold, parts, 3C, 5G parts processing tool.
●High-end impeller machining/surface, curve, universal machining
| Mechanical Specification | Unit | C&F260 | C&F320 | C&F400 | |
| Processing range | X-axis travel | mm | 500 | 600 | 700 |
| Y-axis travel | mm | 500 | 500 | 500 | |
| Z-axis travel | mm | 450 | 450 | 500 | |
| BC-axis travel | mm | ±120 °/360° | ±120 °/360° | ±120 °/360° | |
| Distance from spindle center to table surface | mm | 30-480 | 30-480 | 50-550 | |
| Distance from spindle end face to work surface | mm | 30-480 | 120-720 | 50-650 | |
| Table specification | Workbench size (X/Y) | mm | Φ260 | Φ320 | Φ400 |
| Workbench quantity | pc | 1 | 1 | 1 | |
| Workbench bearing | kg | 200 | 300 | 400 | |
| T-slot specification | mm | 12H8 | 14H8 | 14H8 | |
| Spindle specification | Spindle speed | rpm | 12000/ 15000/ 20000/ 24000 | ||
| Transmission mode | mm | Direct connection/ Inner Tibetan spindle | |||
| Spindle specification | / | BT40/ BBT40/ HSK A63 | |||
| Spindle power | kw | 15/ 18.5/ 20 | |||
| System | CNC system | / | SYNTEC/ FANUC/ Siemens | ||
| Tool Magazine | Capacity | T | 24 | ||
| Feed | X/Y/Z axis fast feed | m/min | 32/32/32 | 36/36/36 | 36/36/36 |
| X/Y/Z axis cutting feed | m/min | 1-10 | 1-10 | 1-10 | |
| BC axis fast forward speed | m/min | 20/30 | 20/30 | 20/30 | |
| Accuracy | Positioning accuracy | mm | ±0.005 | ||
| Repeated positioning accuracy | mm | ±0.003 | |||
| Triaxial rail | X/Y/Z axis guide specification | mm | 35/35/35 | 45/45/45 | 45/45/45 |
| Machine Specification | Main machine dimensions | mm | 2200*2000*2500 | 2400*2200*2600 | 3000*2600*3000 |
| Main engine weight | T | 5 | 7 | 9 | |
| Because technology is constantly updated, the above parameters is only for your reference | |||||
