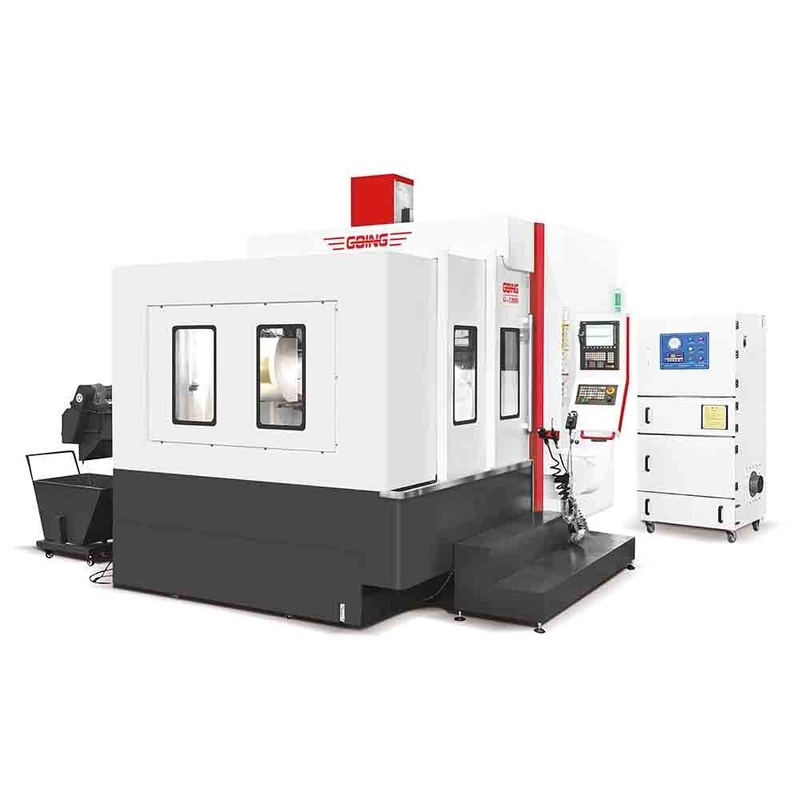

G1200 GRAPHITE PROCESSING MACHINE
●The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability
●Suitable for 3C, 5G, glass, graphite, electrode, ceramic, automobile lamp mold, copper electrode processing, high precision processing
TECHNICAL PARAMETER
| Specifications Models | Unit | G1200 | |
| Processing range | X-axis travel | mm | 1200 |
| Y-axis travel | mm | 1000 | |
| Z-axis travel | mm | 600 | |
| Distance from spindle end face to work surface | mm | 150-750 | |
| Gantry width | mm | 1300 | |
| Table specification | Table specification | mm | 1200*820 |
| T-slot dimensions | mm | 7*14 | |
| Maximum bearing capacity of table | kg | 1000 | |
| Spindle specification | Speed of spindle | rpm | 12000/15000/20000/24000/27000/30000/36000/40000/60000 |
| Spindle nose code | / | BT40/HSK | |
| Kind of drive | / | Direct-coupled type/built-in type | |
| System | CNC system |
/ |
Heidenhain/Fanuc/Siemens/Mitsubishi/SYNTEC |
| Feed | X, Y, Z axis fast feed | m/min | 24/24/24 |
| Cutting feed | m/min |
12 |
|
| Tool Magazine | Capacity | T | 8/12/16/24/30/40/60 |
| Precision | Positional accuracy | mm | 0.005 |
| Repeated positioning accuracy | mm | 0.003 | |
| Machine Specifications | Machine size | mm | 3800*3000*3000 |
| Machine weight | T | 10 | |
| Because technology is constantly updated, the above parameters is only for your reference | |||
