CNC Vertical Machining Center for Automotive & Aerospace Molds

Brand Name:	GOING
MOQ:	1pc

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Machine Type:

Vertical Machining Center (VMC)

Model Range:

GY855 / C-855 / GY1100 / C-165 / GY1200 / GY1300 / GY1500

X-Axis Travel:

800 – 1500 Mm

Y-Axis Travel:

550 – 800 Mm

Z-Axis Travel:

500 – 700 Mm

Max. Table Load:

500 – 1500 Kg

Spindle Taper:

BT40 / BT50 / HSK A63

Spindle Speed:

6000 / 8000 / 10000 / 12000 / 15000 Rpm (model-dependent)

Drive Type:

Belt-driven / Direct-drive

Rapid Traverse (X/Y/Z):

24/24/24 – 48/48/48 M/min

Positioning Accuracy:

±0.005 Mm / 300 Mm

Repeatability:

±0.003 Mm / 300 Mm

Highlight:

CNC vertical machining center for automotive molds

CNC vertical machining center for aerospace molds

CNC vertical machining center with high precision

Product Description

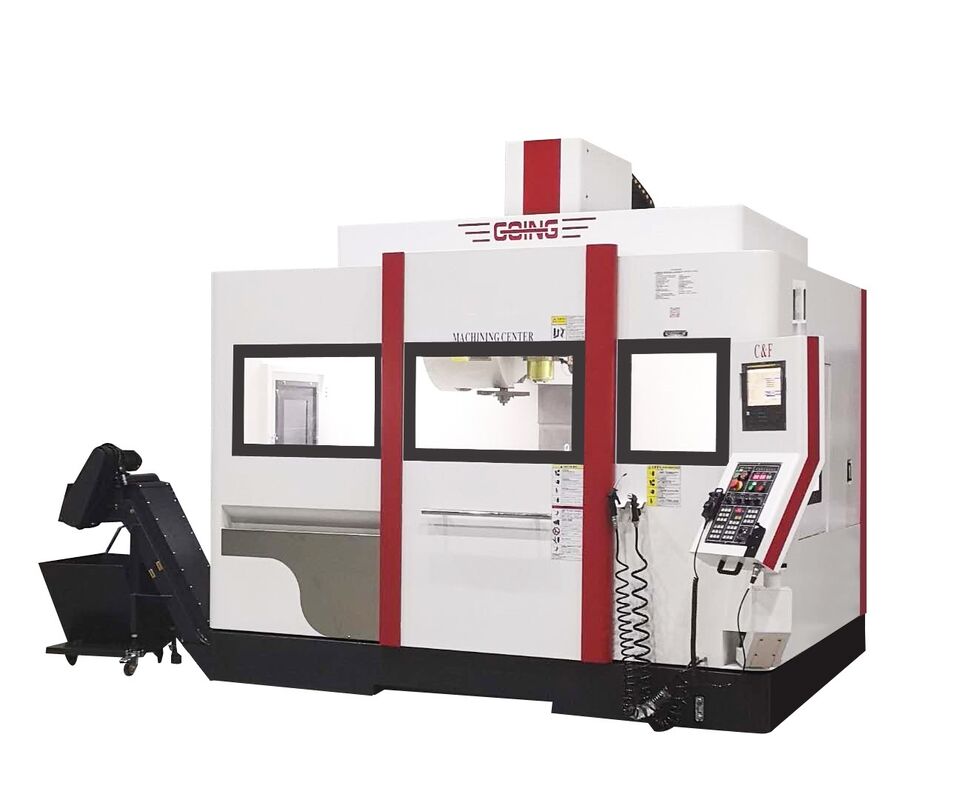

Vertical machining center

Patented integrated mechanical structure, adopting integrated screw‑seat & motor‑seat design with widened base and column to enhance fundamental rigidity.
Equipped with six‑block roller guideways and one‑piece multi‑rib spindle box, improving structural damping to guarantee rigidity and stability during cutting operations.
Reinforced casting main body suppresses vibration under heavy‑load cutting and reduces chatter marks.
Widely applied in aerospace, automotive, home appliance, medical mold and general metal‑processing industries. Typical workpieces include engine blocks, automotive wheel hubs, automotive molds and auto lamp molds.

Technical parameter

Parameter	Unit	GY855	C-855	GY1100	C-165	GY1200	GY1300	GY1500
Processing Range
X-Axis Travel	mm	800	820	1100	1100	1200	1300	1500
Y-Axis Travel	mm	550	550	600	650	700	700	800
Z-Axis Travel	mm	550	600	600	700	600	700	700
Spindle Nose to Table Surface	mm	120–670	120–720	120–720	150–850	80–680	120–820	185–885
Spindle Center to Column Track Face	mm	595	560	650	747	785	750	865
Table Specification
Table Size (L × W)	mm	1000×550	1000×500	1200×600	1250×600	1360×700	1400×700	1600×800
T-Slot Dimensions	mm	5-18×90	5-18×100	5-18×100	5-18×115	5-18×122	5-18×110	7-22×110
Max. Table Load	kg	500	500	800	850	1000	1200	1500
Spindle Specification
Spindle Speed	rpm	8000/10000/12000/15000						6000/8000/10000
Spindle Taper	—	BT40 / HSK A63	BT40 / HSK A63	BT40 / HSK A63	BT40 / BT50	BT40 / BT50	BT40 / BT50	BT40 / BT50
Drive Type	—	Belt / Direct	Belt / Direct	Belt / Direct	Belt / Direct	Belt / Direct	Belt / Direct	Belt / Direct
Motor
Spindle Motor Power	kW	11/15	11/15	11/15	11/15	15/18	15/18	15/18
X/Y/Z Axis Motor Power	kW	3/3/3	3/3/3	3/3/3	3/3/3	3/3/3	3/3/3	4.5/4.5/4.5
Tool Magazine
Capacity	T	24/30
Feed
X/Y/Z Rapid Traverse	m/min	48/48/48	48/48/48	36/36/36	36/36/36	36/36/36	24/24/24	30/30/30
X/Y/Z Cutting Feed	m/min	1–10	1–12	1–10	1–12	1–10	1–10	1–10
Ball Screw / Linear Guide
X/Y/Z Ball Screw Size	mm	4016	4016	4012	4012	4012	4512	5010
X/Y/Z Linear Guide Size	mm	35/45/45	35/45/45	45/45/45	45/45/45	45/55/45	45/45/45	55/45/55
Accuracy
Positioning Accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repeatability	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine Specification
Size (L×W×H)	mm	2600×2200×2400	2700×2300×2640	3100×2300×2600	3900×2400×3000	3600×3000×2700	3400×2700×2800	3700×2900×3800
Weight	T	5.8	6.8	7.8	9	10	9.8	15
