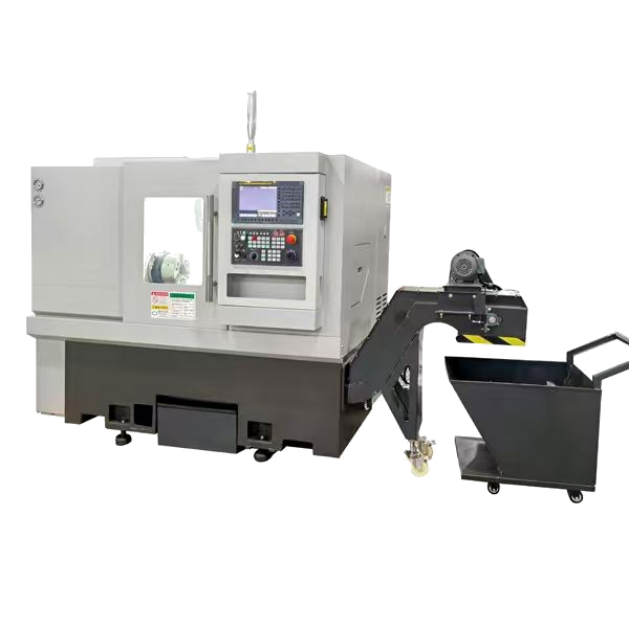

GL-150 Horizontal CNC Lathe/Turning-Milling Compounding

Brand Name:	GOING
MOQ:	1pc

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model:

GL-150

Spindle Speed:

4000-4500 Rpm

Spindle Motor Power:

5.5/7.5 KW

Chuck Size:

6 Inch

X Axis Travel:

200-400 Mm

Z Axis Travel:

330-400 Mm

Application:

Precision Component Machining

Highlight:

Compact High Precision CNC Machine

CNC lathe with milling function

CNC turning center machine

Product Description

GL-150 Horizontal CNC/Turning Milling Compounding

GL-150 is a compact horizontal CNC turning and milling compound machine integrating turning and milling functions for precision machining of small and medium-sized components.
With a space-saving structural design, this machine provides flexible machining capability within a compact footprint. It supports multiple machining processes including turning, end-face machining, drilling, and milling, reducing repeated workpiece clamping and improving production efficiency.
The GL-150 can be integrated into automated production lines with automatic loading and unloading systems according to production requirements, enabling continuous machining operations.
The machine adopts a fully enclosed protection structure to effectively control chips and coolant generated during machining, helping protect internal components and maintain reliable operation.
Applications:

Precision mechanical parts machining
Automotive components machining
Electronic component machining
Small shaft and disc parts machining
Small-batch and mass production applications

Technical Parameter

Item	Description	Unit	GL150 Gang	GL150 Turret	GL150 Milling
Spindle Drive System	Spindle nose end form	-	A2-5	A2-5	A2-5
	Main spindle through-hole diameter	mm	Φ56	Φ56	Φ56
	Maximum spindle speed	rpm	4000	4500	4500
	Three jaw chuck clamping capacity	mm	6"/Φ150	6"/Φ150	6"/Φ150
	Rod action form	-	Hydraulic	Hydraulic	Hydraulic
	Spindle motor power	kW	5.5/7.5	5.5/7.5	5.5/7.5
	X-axis servo motor power	kW	1.5	1.5	1.5
	Z-axis servo motor power	kW	1.5	1.5	1.5
Processing Scope	Maximum bed rotation diameter	mm	Φ400	Φ430	Φ430
	Maximum length of processed workpiece	mm	380	380	380
	Maximum machining workpiece diameter	mm	Φ120	Φ200	Φ200
	Maximum pull rod through-hole diameter	mm	Φ40	Φ46	Φ46
X/Z Axis	X-axis travel	mm	400	200	200
	Z-axis travel	mm	400	400	330
	X/Z/Y axis fast shift rate	m/min	18/30	30/30	30/30
	X/Z axis slide rail model	-	25/25	30/30	30/30
	X/Z screw model	mm	2510/2510	3210/3210	3210/3210
Accuracy	Positioning accuracy	mm	±0.005	±0.005	±0.005
Accuracy	Repeated positioning accuracy	mm	±0.003	±0.003	±0.003
Power Knife Tower	Center height	mm	63	80	80
	Knife tower drive form	-	Servo 63 turret	Servo turret	Power turret
	Knife number	pcs	8	8/12	12
	Specification of square knife holder	mm	20	25	25
	Boring tool holder specifications	mm	Φ20	Φ32	Φ32
	Power knife holder specifications	-	-	-	BMT40
	The highest number of rotations of the power knife holder	rpm	-	-	4000
	Time to change the knife (T-T)	sec	-	0.3	0.3
Water Tank	Cutting water tank capacity	L	80	80	80
Water Tank	Cutting water pressure	MPa	0.8	2	2
Power Demand	Voltage	V	380 ±10%	380 ±10%	380 ±10%
	Power	kW	15	15	15
	Phase number	-	3	3	3
	Frequency	Hz	50	50	50
Machine Tool Size	L×W×H	mm	1900×1450×1650	1900×1450×1600	1900×1450×1600
Machine Tool Size	Weight	kg	2000	2300	2300
