Gantry Machining Center
Created with Pixso. Large CNC Gantry Machining Center Five Axis Head for Aluminum Alloy

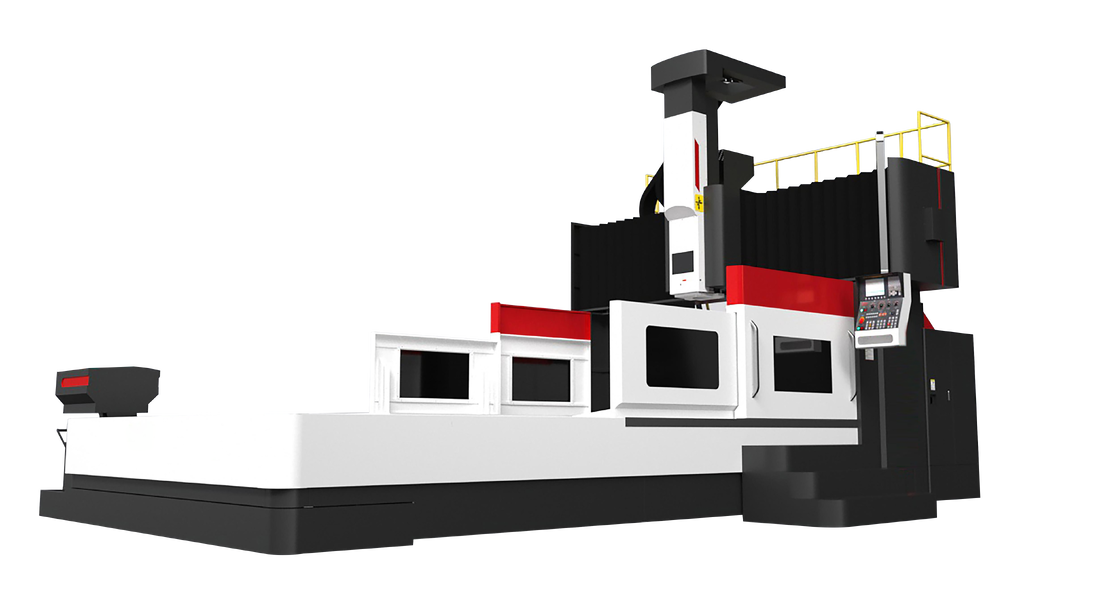

Large CNC Gantry Machining Center Five Axis Head for Aluminum Alloy

Brand Name: GOING
MOQ: 1pc
Detail Information
Place of Origin:
CHINA
Product Type:
Gantry Machining Center
Machine Structure:
Gantry Type Structure
Optional Configuration:
5 Axis Machining Head Available
Application:
Mold, Aerospace, Automotive And Mechanical Parts
Suitable Materials:
Aluminum Alloy, Steel, Mold Materials
Machine Feature:
High Rigidity, High Precision, Stable Machining
Highlight:

Heavy Duty Machining Center

,

Optional 5 Axis Machining Head

,

Large Component Machining

Product Description

Large CNC Gantry Machining Center

  1. The gantry machining machine adopts a high rigidity gantry structure design, suitable for precision machining of large workpieces, mold components, and complex mechanical parts.
  2. The optimized bed, column, and crossbeam structure improve overall mechanical rigidity, providing stable support for continuous machining, heavy cutting operations, and large component processing.
  3. The gantry layout provides a large machining area and flexible configuration options to meet different workpiece sizes and machining requirements.
  4. The machine supports various machining configurations with optional spindle heads and 5 axis machining heads, enabling complex surface machining, multi-angle processing, and multi-side operations.
  5. The modular design allows the machine to adapt to different applications, including large component milling, mold manufacturing, and precision structural part machining.
  6. Applications:
  • Large mold manufacturing
  • Aerospace component machining
  • Automotive parts machining
  • Precision mechanical machining
  • Large structural component processing
Item Unit GY1614 GY2015 GY2518 GY3022 GY4025 GY5022 GY6035 GY8035
Processing Range
X-axis travel (left and right) mm 1600 2000 2500 3000 4000 5000 6200 8200
Y-axis travel (front and back) mm 1400 1500 1800 2400 2700 2400 3500 3500
Z-axis travel (up and down) mm 750 800 900 1000 1000 1000 1000 1000
Spindle nose to work surface distance mm 200-950 170-970 180-980 200-1200 260-1260 260-1260 310-1310 310-1310
Gantry width mm 1500 1520 1850 2250 2250 2250 3500 3500
Workbench Specifications
Workbench size (X-axis direction) mm 1800 2100 2700 1900 2300 1900 6000 8000
Workbench size (Y-axis direction) mm 1400 1200 1500 3100 4100 5100 2500 2500
T-slot size mm 7-22×160 7-22×150 7-22×200 9-22×200 9-22×200 9-22×200 12-28×200 12-28×200
Max workbench load capacity T 6 8 10 12 13 15 20 22
Spindle Specifications
Spindle speed rpm 6000/8000/10000/12000 6000/8000/10000/12000 6000/8000/10000/12000 6000/8000 6000/8000 6000/8000 6000/8000 6000/8000
Spindle motor power kW 18/22 18/22 18/22 22/25 22/25 22/25 22/25 22/25
Main shaft specification - BT40/HSK A63/BT50/HSK A100
Transmission mode - Belt drive / Direct drive / Gear drive
Feed
X/Y/Z axis rapid feed m/min 24/24/24 12/12/10 12/12/10 12/12/10 12/12/10 12/12/10 8/10/10 8/10/10
Cutting feed m/min 6 6 7 7 7 7 7 7
X/Y/Z axis motor specifications Nm 30/30/30 40/30/30 40/30/30 50/30/30 63/36/36 70/30/40 70/30/40 75/40/40
Precision
Positioning accuracy mm ±0.005/300 ±0.005/300 ±0.008/300 ±0.008/300 ±0.01/300 ±0.01/300 ±0.01/300 ±0.01/300
Repeat positioning accuracy mm ±0.003/300 ±0.003/300 ±0.005/300 ±0.005/300 ±0.008/300 ±0.008/300 ±0.008/300 ±0.008/300
Machine Specifications
Machine size (L×W×H) mm 5000×3200×4200 5600×3500×4500 7140×4200×4580 7705×4650×5167 10670×4800×4700 14000×4700×5000 15500×6300×5200 19500×6300×5200
Machine weight T 16 22 26 36 46 55 72 82
