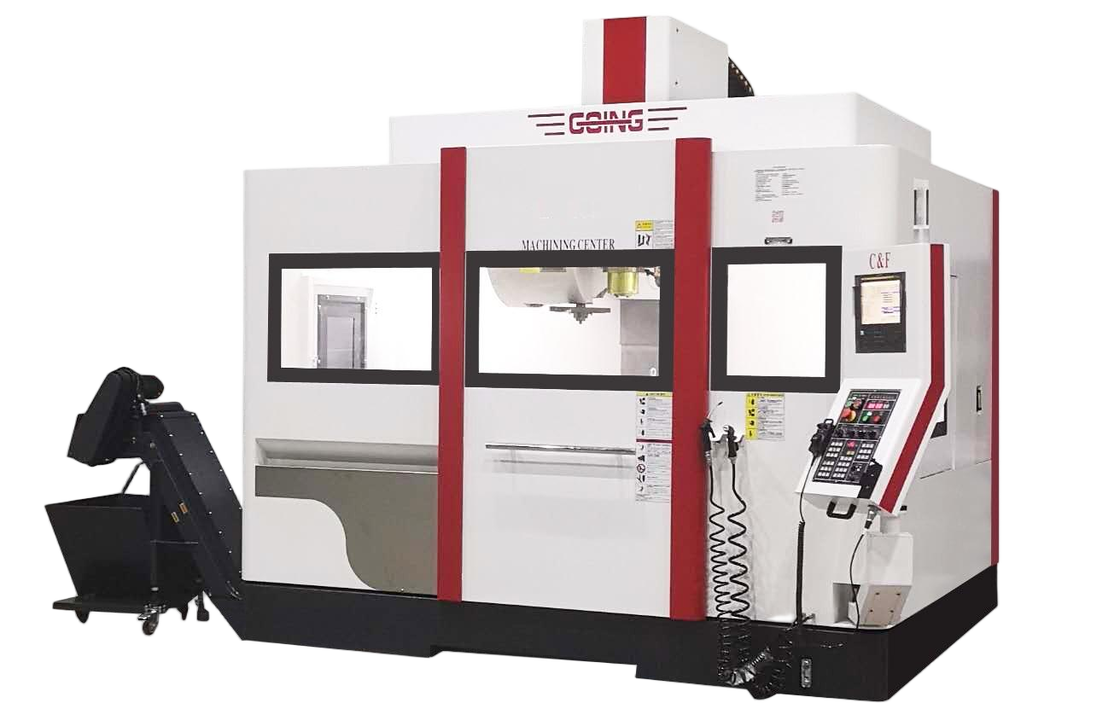

GY1100 Vertical Machining Center
Technical parameter
| Item | Specification |
|---|---|
| Model | GY1100 |
| X‑axis Travel | 1100 mm |
| Y‑axis Travel | 600 mm |
| Z‑axis Travel | 600 mm |
| Spindle nose to worktable | 120‑720 mm |
| Spindle center to column guide surface | 650 mm |
| Table Size (X×Y) | 1200×600 mm |
| Table T‑slot | 5‑18*100 mm |
| Table Max Load | 800 kg |
| Spindle Speed | 8000/10000/12000/15000 rpm |
| Spindle Taper | BT40 / BBT40 / HSK A63 |
| Spindle Drive | Belt type / Direct connection |
| Spindle Motor Power | 11/15 kW |
| X/Y/Z Axis Motor Power | 3*3*3 kW |
| Tool Magazine Capacity | 24/30 T |
| Rapid Feed X/Y/Z | 36/36/36 m/min |
| Cutting Feed X/Y/Z | 1‑10 m/min |
| X/Y/Z Ball Screw Spec | 4012/4012/4012 |
| X/Y/Z Guideway Spec | 45/45/45 |
| Positioning Accuracy | ±0.005/300 mm |
| Repeat Positioning Accuracy | ±0.003/300 mm |
| Machine Dimension | 3100*2300*2600 mm |
| Machine Weight | 6 T |
