| Brand Name: | GOING |

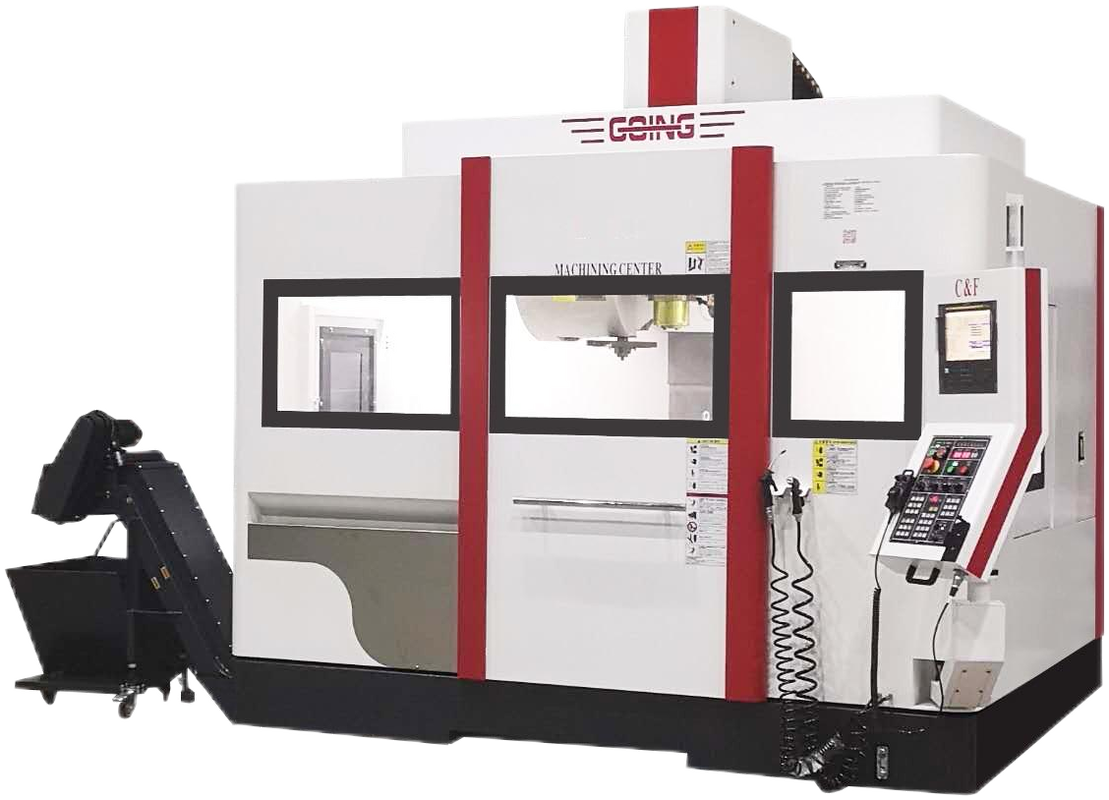

GY1200 Vertical Machining Center
Technical parameter
| Item | Specification |
|---|---|
| Model | GY1200 |
| X‑axis Travel | 1200 mm |
| Y‑axis Travel | 700 mm |
| Z‑axis Travel | 600 mm |
| Spindle nose to worktable | 80‑680 mm |
| Spindle center to column guide surface | 785 mm |
| Table Size (X×Y) | 1360×700 mm |
| Table T‑slot | 5‑18*122 mm |
| Table Max Load | 1000 kg |
| Spindle Speed | 8000/10000/12000/15000 rpm |
| Spindle Taper | BT40 / BBT40 / HSK A63 |
| Spindle Drive | Belt type / Direct connection |
| Spindle Motor Power | 15/18 kW |
| X/Y/Z Axis Motor Power | 3*3*3 kW |
| Tool Magazine Capacity | 24/30T |
| Rapid Feed X/Y/Z | 36/36/36 m/min |
| Cutting Feed X/Y/Z | 1‑10 m/min |
| X/Y/Z Ball Screw Spec | 4012/4012/4012 |
| X/Y/Z Guideway Spec | 45/55/45 |
| Positioning Accuracy | ±0.005/300 mm |
| Repeat Positioning Accuracy | ±0.003/300 mm |
| Machine Dimension | 3600*3000*2700 mm |
| Machine Weight | 9 T |
