| Brand Name: | GOING |

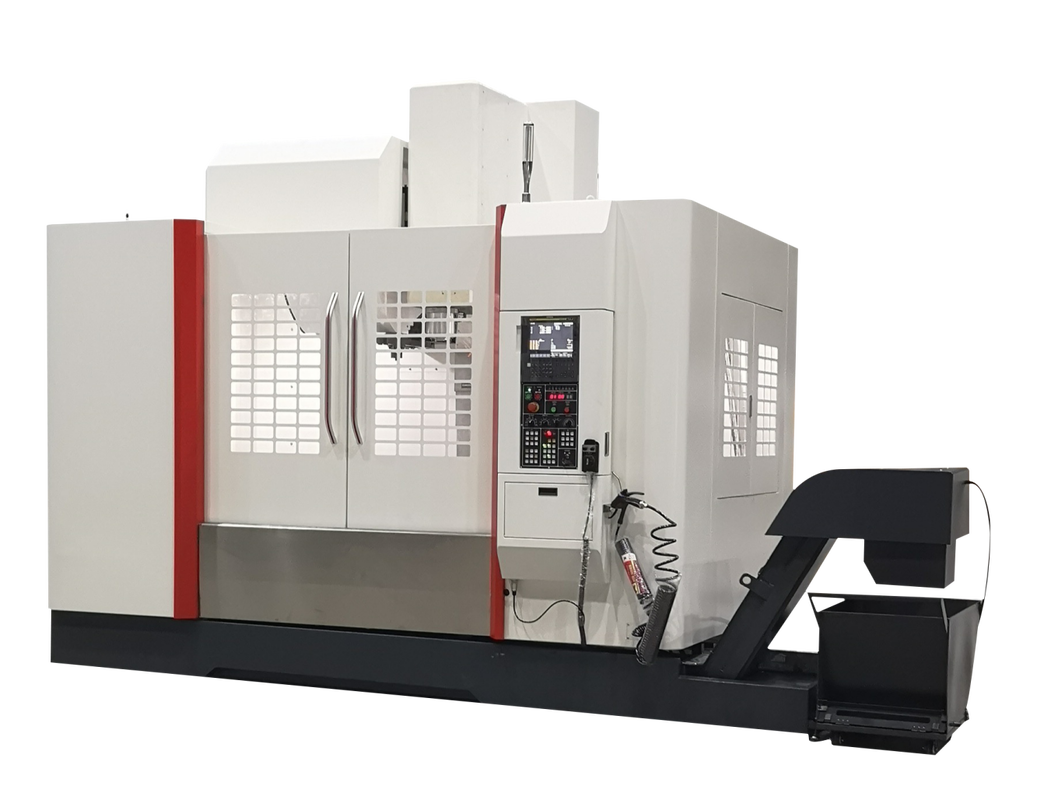

GY1300 Vertical Machining Center
Technical parameter
| Item | Specification |
|---|---|
| Model | GY1300 |
| X‑axis Travel | 1300 mm |
| Y‑axis Travel | 700 mm |
| Z‑axis Travel | 700 mm |
| Spindle nose to worktable | 120‑820 mm |
| Spindle center to column guide surface | 750 mm |
| Table Size (X×Y) | 1400×700 mm |
| Table T‑slot | 5‑18*110 mm |
| Table Max Load | 1200 kg |
| Spindle Speed | 6000/8000/10000 rpm |
| Spindle Taper | BT40 / BT50 |
| Spindle Drive | Belt type / Direct connection |
| Spindle Motor Power | 15/18 kW |
| X/Y/Z Axis Motor Power | 3*3*3 kW |
| Tool Magazine Capacity | 24/30 T |
| Rapid Feed X/Y/Z | 24/24/24 m/min |
| Cutting Feed X/Y/Z | 1‑10 m/min |
| X/Y/Z Ball Screw Spec | 4512/4512/4512 |
| X/Y/Z Guideway Spec | 45/45/45 |
| Positioning Accuracy | ±0.005/300 mm |
| Repeat Positioning Accuracy | ±0.003/300 mm |
| Machine Dimension | 3400*2700*2800 mm |
| Machine Weight | 12 T |
