| Brand Name: | GOING |

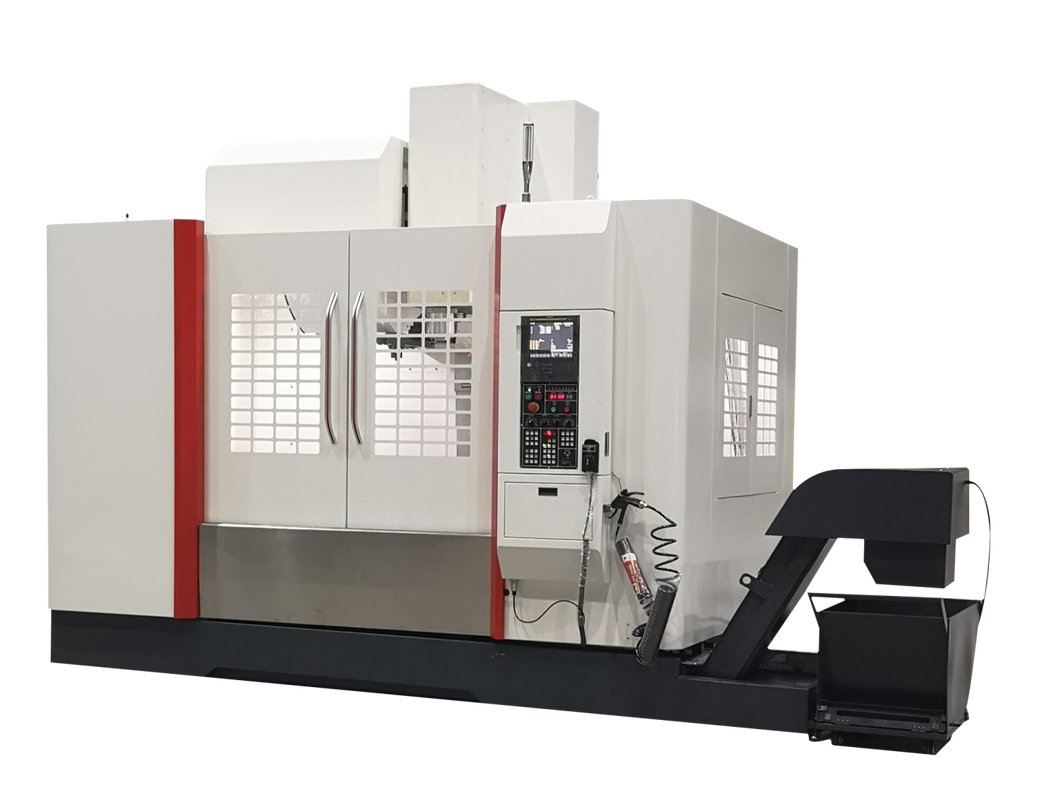

GY1500 Vertical Machining Center
Technical parameter
| Item | Specification |
|---|---|
| Model | GY1500 |
| X‑axis Travel | 1500 mm |
| Y‑axis Travel | 800 mm |
| Z‑axis Travel | 700 mm |
| Spindle nose to worktable | 185‑885 mm |
| Spindle center to column guide surface | 865 mm |
| Table Size (X×Y) | 1600×800 mm |
| Table T‑slot | 7‑22*110 mm |
| Table Max Load | 1500 kg |
| Spindle Speed | 6000/8000/10000 rpm |
| Spindle Taper | BT40 / BT50 |
| Spindle Drive | Belt type / Direct connection |
| Spindle Motor Power | 15/18 kW |
| X/Y/Z Axis Motor Power | 4.5*4.5*4.5 kW |
| Tool Magazine Capacity | 24/30 T |
| Rapid Feed X/Y/Z | 30/30/30 m/min |
| Cutting Feed X/Y/Z | 1‑10 m/min |
| X/Y/Z Ball Screw Spec | 5010/5010/5010 |
| X/Y/Z Guideway Spec | 55/45/55 |
| Positioning Accuracy | ±0.005/300 mm |
| Repeat Positioning Accuracy | ±0.003/300 mm |
| Machine Dimension | 3700*2900*3800 mm |
| Machine Weight | 15 T |
