| Brand Name: | GOING |

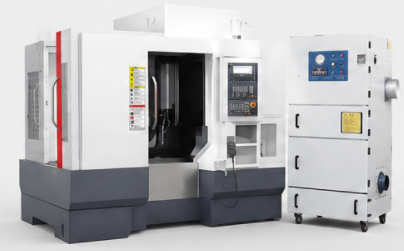

G1000 Graphite CNC Milling Machine
Technical parameter
| Item | Specification |
|---|---|
| Model | G1000 |
| X‑axis Travel | 1000 mm |
| Y‑axis Travel | 1000 mm |
| Z‑axis Travel | 500 mm |
| Spindle End‑Face To Table Surface | 100‑600 mm |
| Worktable Size(X×Y) | 1000×1000 mm |
| Max Table Load | 600 kg |
| T‑slot |
7*14 mm |
| Rapid Feed X/Y/Z | 15/15/15 m/min |
| Max Cutting Feed | 12 m/min |
| Positioning Accuracy | 0.005 mm |
| Repeated Positioning Accuracy | 0.003 mm |
| Machine Dimension | 3*2.5*2.8m |
| Machine Weight | 6T |
