| Brand Name: | GOING |

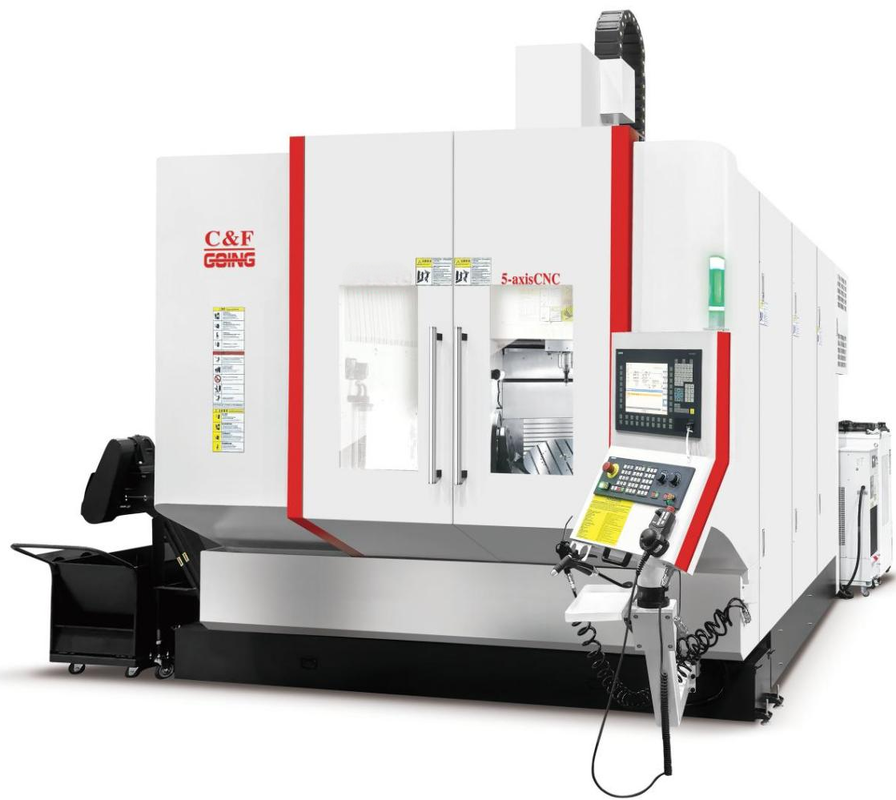

C&F260 Cradle Five‑Axis Machining Center
Technical Parameters
| Item | Unit | C&F260 |
|---|---|---|
| X/Y/Z axis travel | mm | 400/600/400 |
| A/C axis travel | — | ±120°/360° |
| Spindle nose to table surface distance | mm | 120~570 |
| Table size | mm | Ø260 |
| Table T‑slot dimension | mm | 7‑12 |
| Max table load capacity | kg | 60 |
| Spindle speed | rpm | 12000/15000/20000/24000 |
| Spindle motor power | kw | 11/15/18/20/22/25/30 |
| Spindle taper specification | — | BT40 / BBT40 / HSK‑A63 |
| Transmission mode | — | Direct connection / Built‑in |
| Tool magazine capacity | T | 20/24/30/40/60 |
| X/Y/Z axis rapid feed | m/min | 30/30/30 |
| X/Y/Z axis cutting feed | m/min | 1-20 |
| A/C axis rotating speed | rpm | 20/30 |
| Positioning accuracy | mm | ±0.005 |
| Re‑positioning accuracy | mm | ±0.003 |
| X/Y/Z linear guide specification | mm | 35*35*45 |
| Machine overall dimension | mm | 4500*4200*3200 |
| Machine weight | t | 7 |
