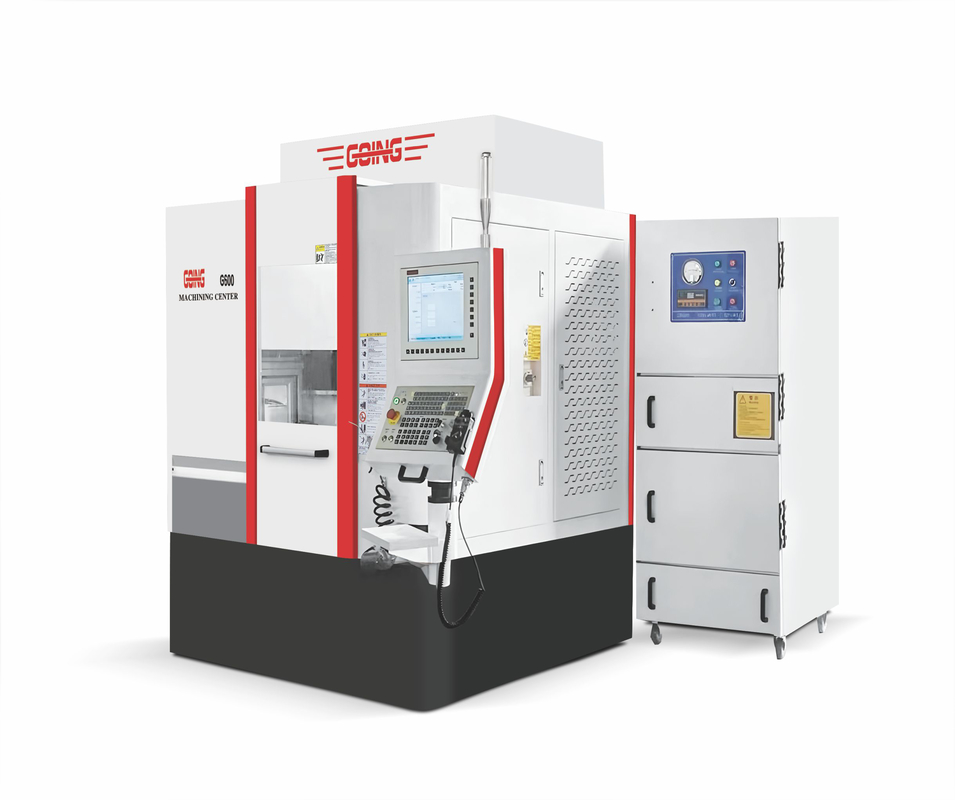

GRAPHITE MACHINE
●The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability
●Suitable for 3C, 5G, glass, graphite, electrode, ceramic, automobile lamp mold, copper electrode processing, high precision processing
TECHNICAL PARAMETER
| Specifications Models | Unit | G600 | G800 | G1000 | G1200 | G1600 | G2000 | G2500 | |
| Processing range | X-axis travel | mm | 600 | 600 | 1000 | 1200 | 1600 | 2000 | 2500 |
| Y-axis travel | mm | 500 | 800 | 1000 | 1000 | 1400 | 1500 | 1800 | |
| Z-axis travel | mm | 250 | 350 | 500 | 600 | 750 | 800 | 900 | |
| Distance from spindle end face to work surface | mm | 100-350 | 100-450 | 100-600 | 150-750 | 200-950 | 170-970 | 180-980 | |
| Gantry width | mm | 700 | 700 | 1200 | 1300 | 1500 | 1520 | 1850 | |
| Table specification | Table specification | mm | 600*500 | 800*600 | 1000*1000 | 1200*820 | 1700*1200 | 2100*1200 | 2700*1500 |
| T-slot dimensions | mm | 5*14 | 5*14 | 7*14 | 7*14 | 7*22 | 7*22 | 7*22 | |
| Maximum bearing capacity of table | kg | 300 | 400 | 600 | 1000 | 3500 | 5000 | 6000 | |
| Main specification | Speed of mainshaft | rpm | 12000/15000/20000/24000/27000/30000/36000/40000/60000 | ||||||
| Spindle nose code | / | BT40/HSK | |||||||
| Kind of drive | / | Direct-coupled type/built-in type | |||||||
| System | CNC system | / | Heidenhain/Fanuc/Siemens/Mitsubishi/SYNTEC | ||||||
| Feed | X, Y, Z axis fast feed | m/min | 15/15/15 | 15/15/15 | 15/15/15 | 24/24/24 | 24/24/24 | 18/18/18 | 18/18/18 |
| Cutting feed | m/min |
12 |
|||||||
| Tool Magazine | Capacity | T | 8/12/16/24/30/40/60 | ||||||
| feed | X/Y/Z axis rapid feed | m/min | 15/15/15 | 15/15/15 | 15/15/15 | 24/24/24 | 24/24/24 | 18/18/18 | 18/18/18 |
| X/Y/Z axis cutting feed | m/min | 12 | |||||||
| Precision | Positional accuracy | mm | 0.005 | ||||||
| Repeated positioning accuracy | mm | 0.003 | |||||||
| Machine Specifications | Machine size | mm | 2700*2100*2400 | 2100*2100*2550 | 3000*2500*2800 | 3800*3000*3000 | 5000*3200*4200 | 5600*3500*4500 | 7140*4200*4580 |
| Machine weight | T | 4 | 5 | 6 | 10 | 16 | 22 | 26 | |
| Because technology is constantly updated, the above parameters is only for your reference | |||||||||
