| Brand Name: | GOING |

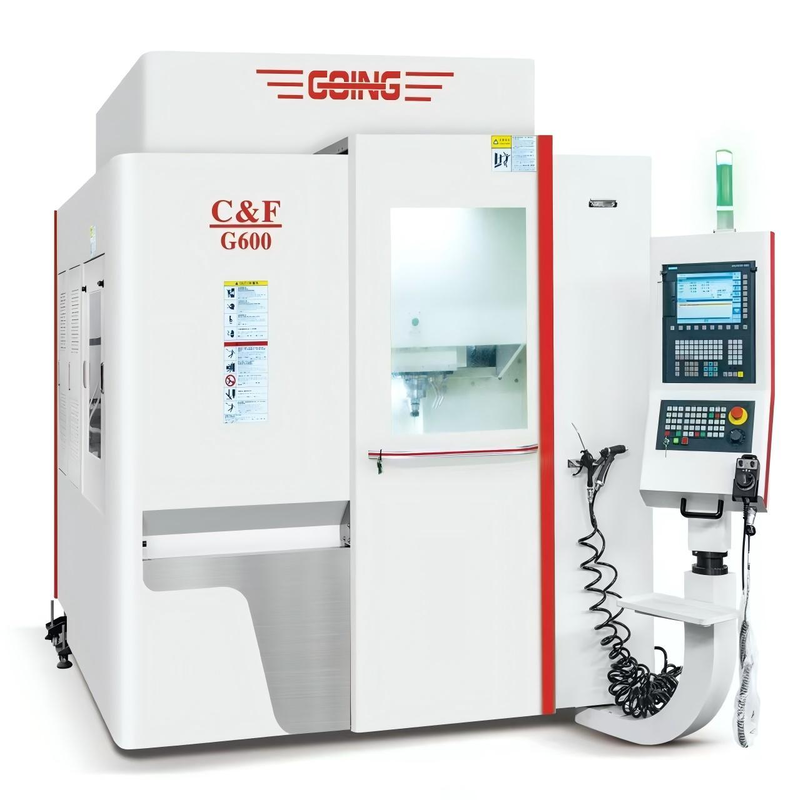

G600 Linear‑Motor High‑Speed Machine
G600 is compact linear‑motor high‑speed machine built for small‑size precision molds.
Back‑plate gantry frame delivers stable rigidity.
Tri‑axis linear‑motor realizes ultra‑fast acceleration for mirror‑finish milling.
Ideal for graphite, tungsten steel, sapphire and small 3C precision component manufacturing.
Technical Parameters
| Item | Unit | G600 |
|---|---|---|
| X/Y/Z axis travel | mm | 600/500/260 |
| Spindle nose to work surface distance | mm | 150‑410 |
| Workbench dimension | mm | 600*520 |
| Max workbench bearing capacity | kg | 100 |
| T‑slot specification | mm | 3‑14*100 |
| Spindle type | — | Built‑in |
| Spindle taper | — | HSK‑E50 |
| Spindle speed | rpm | 27000/30000 |
| Spindle motor power | kw | 11 |
| Tool magazine capacity | T | 24 |
| X/Y/Z axis rapid feed | m/min | 60/60/60 |
| X/Y/Z axis cutting feed | m/min | 1‑20 |
| X/Y/Z linear motor thrust | N | 5600/5600/5600 |
| Positioning accuracy | mm | 0.003 |
| Repeated positioning accuracy | mm | 0.002 |
| X/Y/Z linear guide specification | mm | 30/25/25 |
| Air pressure requirement | kg/cm² | 6 |
| Main machine overall dimension | mm | 1630*1600*2140 |
| Main machine weight | kg | 6500 |
