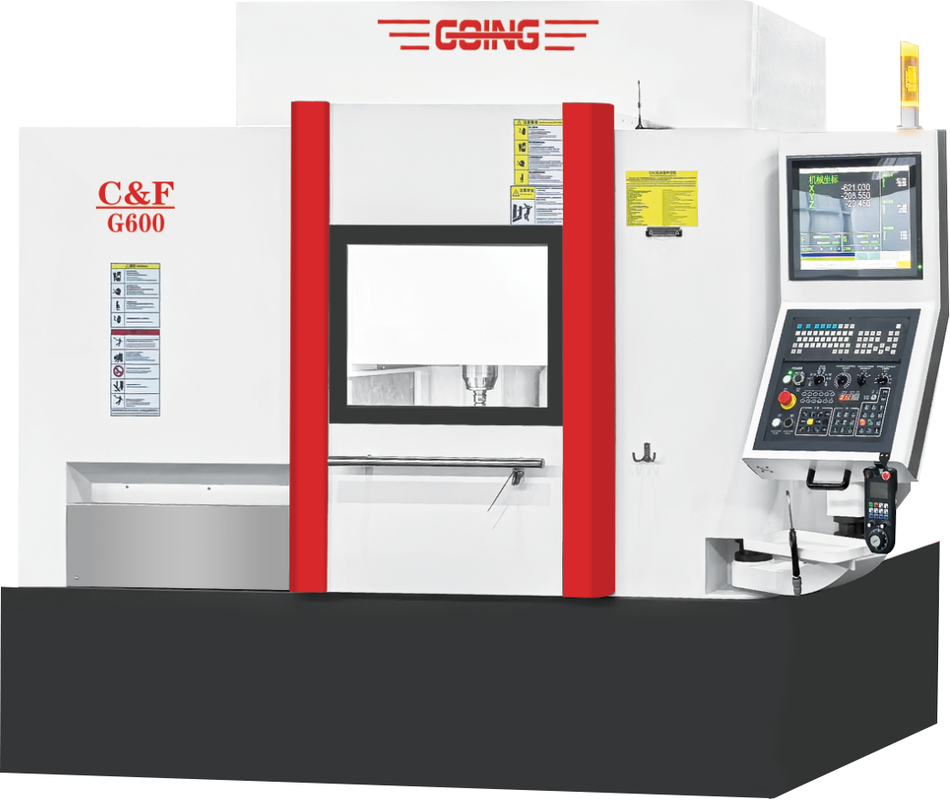

Linear Motor High-Speed Machining Center

Brand Name:	GOING
MOQ:	1pc

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Type:

Linear Motor High-Speed Machining Center

Product Series:

G Series

Model:

G600 / G800 / G1000

Machine Structure:

Back-Plate Gantry Structure

Drive System:

Linear Motor Drive

Inspection System:

Laser Inspection And Precision Circular Inspection

Environmental Equipment:

Oil Mist Collector And Graphite Dust Collector

Typical Applications:

Precision Mold Machining

Machining Materials:

Die Steel, Tungsten Steel, Ceramics, Titanium Alloy, Silicon Carbide, Quartz, Sapphire And Graphite

Highlight:

Linear Motor Machining Center

High-Speed Machining Center with warranty

Precision Linear Motor CNC Machine

Product Description

Linear Motor High-Speed Machining Center

Linear Motor Drive: Equipped with a linear motor drive system and high-speed spindle, with rapid traverse of up to 60 m/min. The machine is suitable for high-speed precision machining applications.
Precision Machining Configuration: The machine features a built-in high-speed spindle, linear guideways, automatic tool setting, laser inspection and spindle thermal compensation to support precision machining requirements.
Wide Material Applications: Suitable for precision machining of die steel, tungsten steel, ceramics, titanium alloy, silicon carbide, quartz, sapphire and graphite, with applications in aerospace, precision molds, new energy, medical and 3C industries.

Technical parameter

Specification	Unit	G600	G800	G1000
X-axis Travel	mm	600	800	1000
Y-axis Travel	mm	500	700	1000
Z-axis Travel	mm	260	500	600
Spindle Nose to Worktable Distance	mm	150–410	200–700	200–800
Worktable Size – X Direction	mm	600	800	1100
Worktable Size – Y Direction	mm	520	800	1000
Maximum Table Load	kg	100	300	500
T-slot	mm	3-14×100	7-22×135	7-22×125
Spindle Speed	rpm	27,000 / 30,000	20,000 / 24,000	20,000 / 24,000
Spindle Type	—	Built-In	Built-In	Built-In
Spindle Taper	—	HSK-E50	HSK-A63	HSK-A63
Spindle Power	kW	11	15 / 18	15 / 18
Tool Magazine Capacity	T	24	24	24
X/Y/Z Rapid Traverse	m/min	60 / 60 / 60	60 / 60 / 60	60 / 60 / 60
X/Y/Z Cutting Feed Rate	m/min	1–20	1–20	1–20
X/Y/Z Motor Speed	rpm	5600 / 5600 / 5600	14250 / 14250 / 7650	14250 / 14250 / 7650
Positioning Accuracy	mm	0.003	0.003	0.003
Repeatability	mm	0.002	0.002	0.002
X/Y/Z Ball Screw Specification	mm	30 / 25 / 25	35 / 35 / 35	45 / 45 / 45
Air Pressure	kg/cm²	6	6	6
Machine Dimensions	mm	1630×1600×2140	5100×3000×4200	4600×3600×3200
Machine Weight	kg	6500	7000	9000
