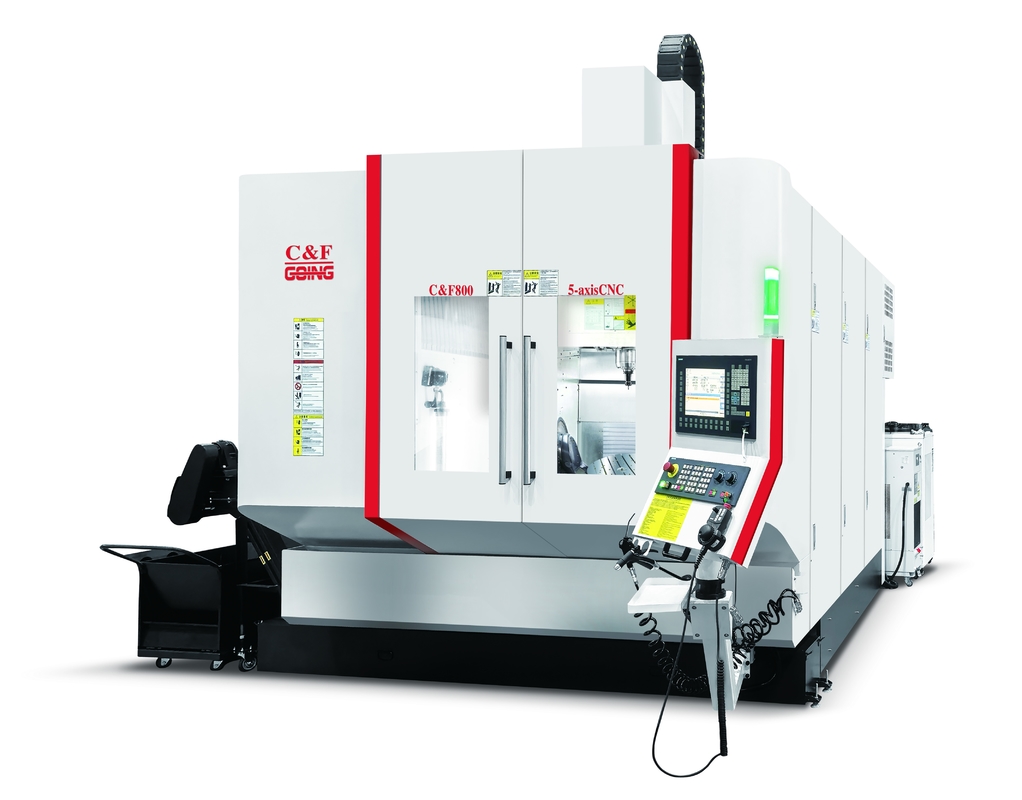

BRIDGE CRADLE FIVE AXIS PROCESSING MACHINE
●The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability
●Integrated screw base and motor base to ensure high rigidity and stability
●Suitable for aerospace, high precision mold, parts, 3C, 5G parts processing tool.
●High-end impeller machining/surface, curve, universal machining
TECHNICAL PARAMETER
| Mechanical Specification | Unit | C&F260 | C&F320 | C&F400 | C&F500 | C&F630 | C&F800 | |
| Processing range | X-axis travel | mm | 400 | 550 | 750 | 700 | 750 | 950 |
| Y-axis travel | mm | 600 | 800 | 1100 | 900 | 800 | 1000 | |
| Z-axis travel | mm | 400 | 450 | 550 | 550 | 600 | 600 | |
| AC-axis travel | mm | ±120 °/360° | ±120 °/360° | ±120 °/360° | ±120 °/360° | ±120 °/360° | ±120 °/360° | |
| Distance from spindle end face to work surface | mm | 120~570 | 120~570 | 150~650 | 200~750 | 120~720 | 180~780 | |
| Table specification | Workbench size | mm | Φ260 | Φ320 | Φ400 | Φ500 | Φ630 | Φ800 |
| T-slot specification | mm | 7-12 | 7-12 | 8-14 | 8-14 | 8-14 | 8-14 | |
| Maximum load-bearing capacity of the workbench | kg | 60 | 60 | 120 | 500 | 850 | 1000 | |
| Spindle specification | Kind Of Drive | mm | Direct connection/ Inner Tibetan spindle | |||||
| Spindle nose code | / | BT40/ BBT40/ HSK A63 | ||||||
| Spindle speed | 12000/15000/20000/24000 | |||||||
| Spindle motor power | kw | 11/15/ 18/ 20/22/ 25/ 30 | ||||||
| System | System | / | Siemens/ Heidenhain/ FANUC | |||||
| Tool Magazine | Capacity | T | 20/ 24/ 30/ 40/ 60 | |||||
| Feed | X/Y/Z axis rapid feed | m/min | 30/30/30 | 30/30/30 | 30/30/30 | 32/32/32 | 36/36/36 | 36/36/36 |
| X/Y/Z axis cutting feed | m/min | 1-20 | ||||||
| AC axis speed | m/min | 20/30 | ||||||
| Accuracy | Positioning accuracy | mm | ±0.005 | |||||
| Positioning accuracy | mm | ±0.003 | ||||||
| Triaxial rail | X/Y/Z axis guide rail specifications | mm | 35*35*45 | 35*35*45 | 35*45*35 | 35/35/35 | 35/35/35 | 45/45/45 |
| Machine Specification | Machine size | mm | 4500*4200*3200 | 4500*4200*3200 | 4500*4400*3200 | 4500*4200*3300 | 4500*4100*3300 | 4500 *4200 * 3400 |
| Machine weight | T | 7 | 8 | 10 | 12 | 14 | 15 | |
| Because technology is constantly updated, the above parameters is only for your reference | ||||||||
