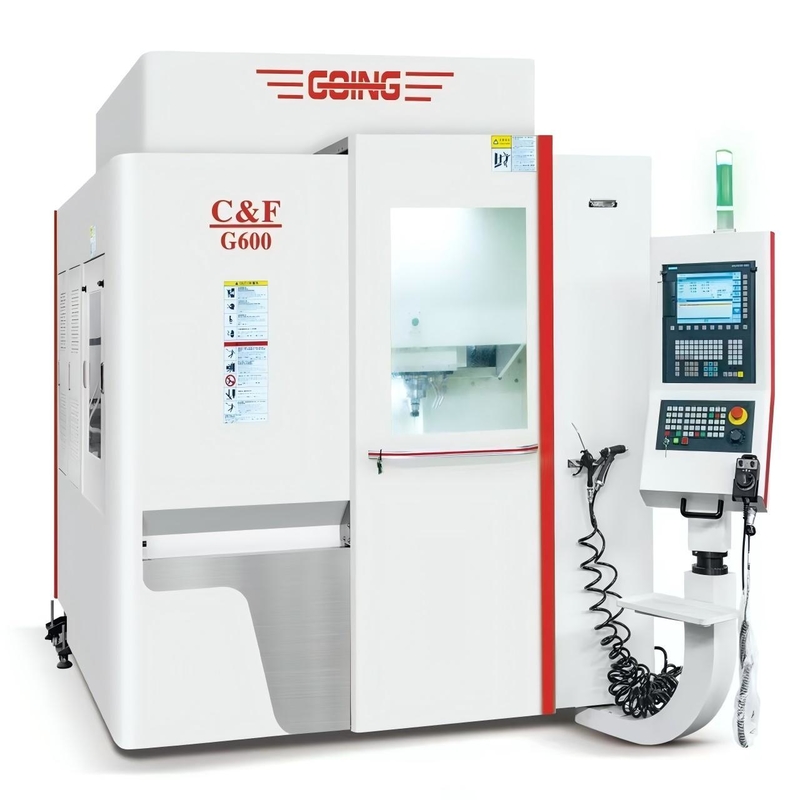

LINEAR MOTOR HIGH-SPEED MACHINE
●High efficiency milling technology
●High rigidity casting structure
●Linear motor drive
●Durable.stable and efficient
TECHNICAL PARAMETER
| Mechanical Specification | Unit | G600 | G800 | G1000 | |
Processing range |
X-axis travel | mm | 600 | 800 | 1000 |
| Y-axis travel | mm | 500 | 700 | 1000 | |
| Z-axis travel | mm | 260 | 500 | 600 | |
| Distance from spindle end face to work surface | mm | 150-410 | 200-700 | 200-800 | |
Table specification |
Table size (X axis direction) | mm | 600 | 800 | 1100 |
| Table size (Y-axis direction) | mm | 520 | 800 | 1000 | |
| Table bearing | kg | 100 | 300 | 500 | |
| T-slot specification | mm | 3-14*100 | 7-22*135 | 7-22*125 | |
| Spindle specification | Spindle speed | rpm | 27000/30000 | 20000/24000 | 20000/24000 |
| Transmission mode | mm | Inner Tibetan spindle | |||
| Spindle specification | / | HSKE50 | HSKA63 | HSKA63 | |
| Spindle power | kw | 11 | 15/18 | 15/18 | |
| System | System | / | Siemens/ FANUC/ Heidenhain | ||
| Tool Magazine | Capacity | T | 24T | 24T | 24T |
| Feed | X/Y/Z axis fast feed | m/min | 60/60/60 | 60/60/60 | 60/60/60 |
| X/Y/Z axis cutting feed | m/min | 1-20 | 1-20 | 1-20 | |
| Triaxial motol | X/Y/Z axis linear motor thrust | nm | 5600/5600/5600 | 14250/14250/7650 | 14250/14250/7650 |
| Accuracy | Positioning accuracy | mm | 0.003 | 0.003 | 0.003 |
| Repeated positioning accuracy | mm | 0.002 | 0.002 | 0.002 | |
| Triaxial rail | X/Y/Z axis guide specification | mm | 30/25/25 | 35/35/35 | 45/45/45 |
| Machine Specification | Air pressure | kg/cm² | 6 | 6 | 6 |
| Main machine dimensions (about) | mm | 1630*1600*2140 | 5100*3000*4200 | 4600*3600*3200 | |
| Main engine weight (about) | kg | 6500 | 7000 | 9000 | |
| Because technology is constantly updated, the above parameters is only for your reference | |||||
