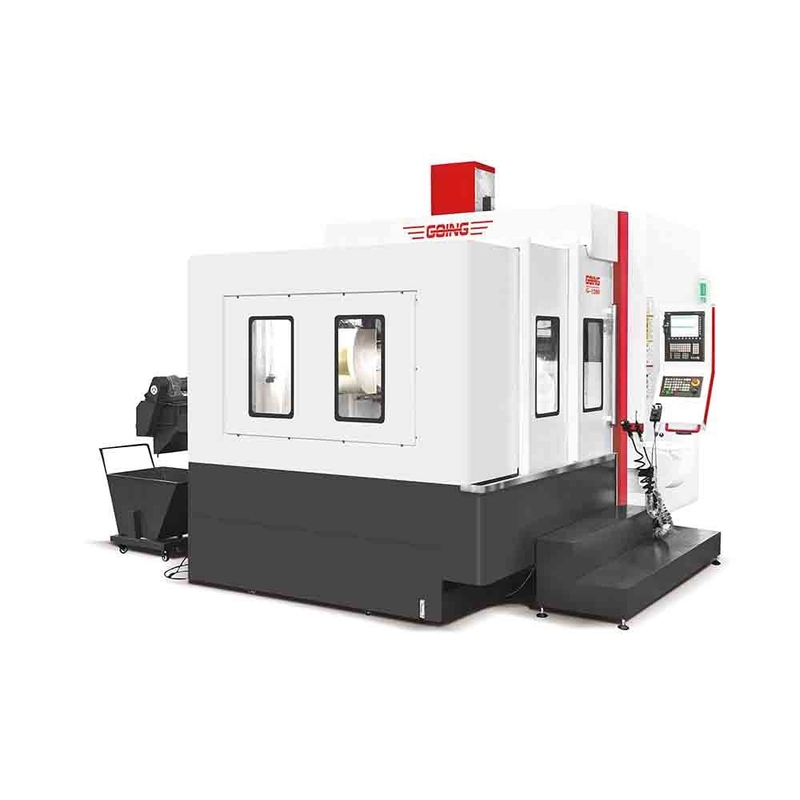

| Specifications Models | Unit | G1200 | |
| Processing range | X-axis travel | mm | 1200 |
| Y-axis travel | mm | 1000 | |
| Z-axis travel | mm | 600 | |
| Distance from spindle end face to work surface | mm | 150-750 | |
| Gantry width | mm | 1300 | |
| Table specification | Table specification | mm | 1200*820 |
| T-slot dimensions | mm | 7*14 | |
| Maximum bearing capacity of table | kg | 1000 | |
| Main specification | Speed of mainshaft | rpm | 12000/15000/20000/24000/30000 |
| Spindle nose code | / | BT40/BBT40/HSK E40/HSK A63 | |
| Kind of drive | / | Direct connection/ Inner Tibetan spindle/ Belt-type | |
| Feed | X, Y, Z axis fast feed | m/min | 24/24/24 |
| Cutting feed | m/min | 10 | |
| Tool Magazine | Capacity | T | 8/12/16/24/30/40/60 |
| Motor | Spindle power | kw | 15 |
| X, Y, Z axis motors | / | 3/3/3 | |
| Precision | Positional accuracy | mm | ±0.005/300 |
| Repeated positioning accuracy | mm | ±0.003/300 | |
| Machine Specifications | Machine size | mm | 3800*3000*3000 |
| Machine weight | T | 10 | |
| Because technology is constantly updated, the above parameters is only for your reference | |||
