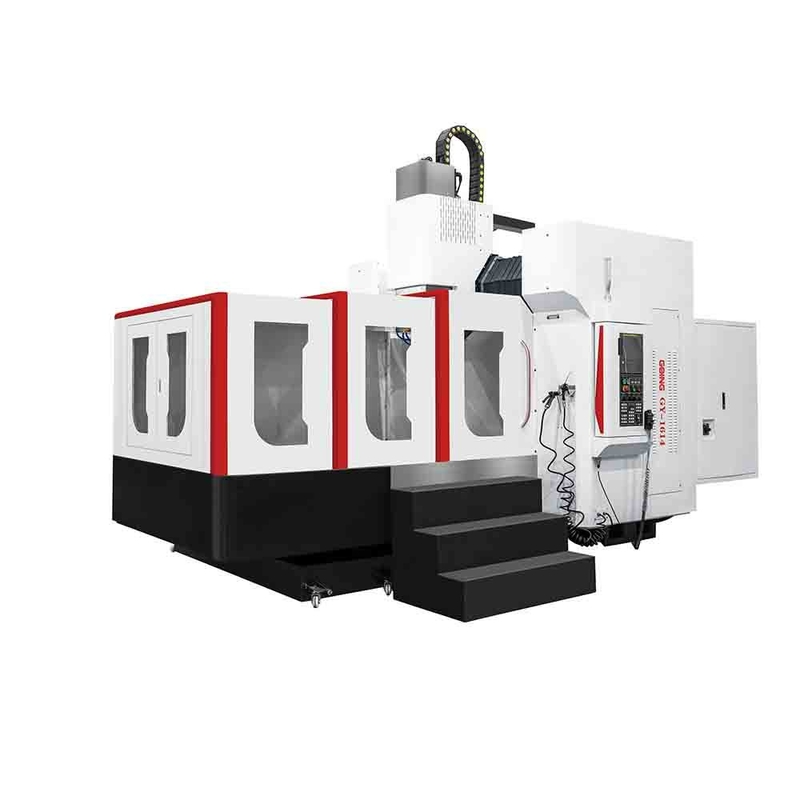

GY1614 GANTRY MACHINING MACHINE
●Unique and powerful mechanical structure
●Well-designed mechanical structure with high rigidity and long-term stability
●The mechanical structure is cast by advanced mina process
TECHNICAL PARAMETER
| Specifications/Models | Unit | GY-1614 | |
Processing range |
X-axis travel | mm | 1600 |
| Y-axis travel | mm | 1400 | |
| Z-axis travel | mm | 750 | |
| Distance from spindle nose to work surface | mm | 200-950 | |
| Gantry width | mm | 1500 | |
| Table specification | Table size (X-axis direction) | mm | 1800*1400 |
| Table T-slot dimensions | mm | 7*22*160 | |
| Maximum bearing capacity of table | mm | 6000 | |
| Spindle specification | Speed of mainshaft | T | 6000/8000/10000/12000 |
| Spindle motor power | rpm | 18/22 | |
| Spindle nose code | kw | BT40/HSK A63/ BT50/ HSK A100 | |
| Kind of drive | / | Belt Type /Direct-coupled/Gear type | |
| Feed | X, Y, Z axis fast feed | m/min | 24/24/24 |
| Cutting feed | m/min | 6 | |
| X, Y, Z axis motor specifications | Nm | 30/30/30 | |
| Precision | Positional accuracy | mm | ±0.005/300 |
| Repeated positioning accuracy | mm | ±0.003/300 | |
| Machine Specification | Machine size | mm | 5000*3200*4200 |
| Machine weight | T | 16 | |
| Because technology is constantly updated, the above parameters is only for your reference | |||
