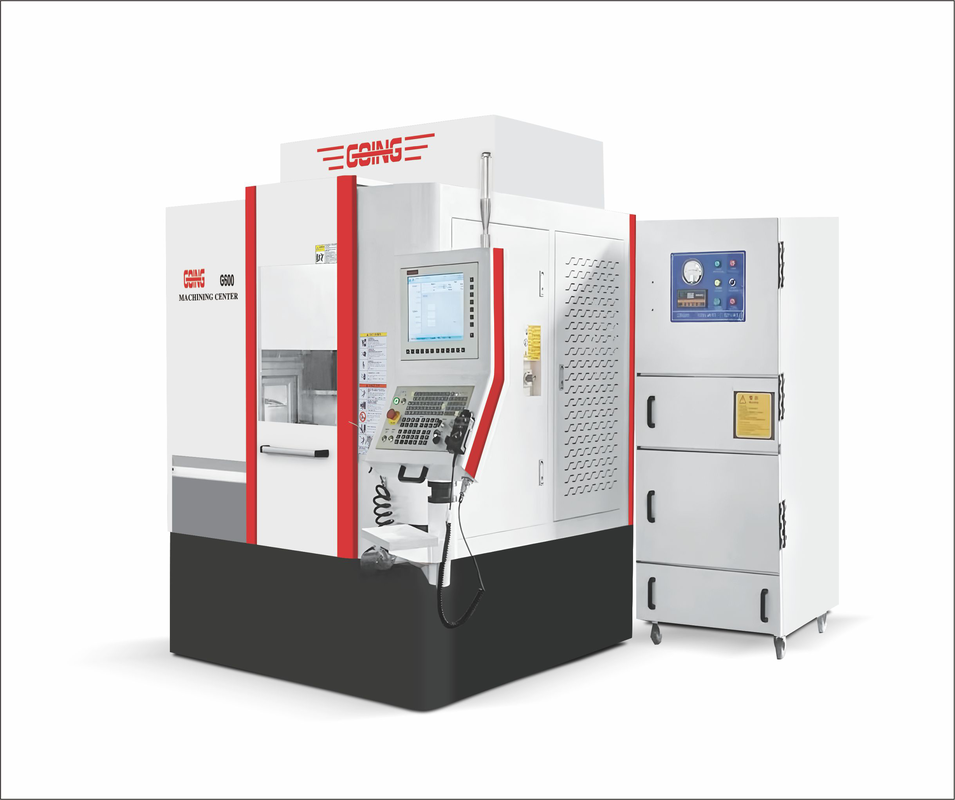

Graphite machining center
Technical parameter
| Specification | Unit | G600 | G800 | G1000 | G1200 | G1600 | G2000 | G2500 |
|---|---|---|---|---|---|---|---|---|
| Processing Range | ||||||||
| X-axis Travel | mm | 600 | 600 | 1000 | 1200 | 1600 | 2000 | 2500 |
| Y-axis Travel | mm | 500 | 800 | 1000 | 1000 | 1400 | 1500 | 1800 |
| Z-axis Travel | mm | 250 | 350 | 500 | 600 | 750 | 800 | 900 |
| Distance from Spindle Nose to Work Surface | mm | 100–350 | 100–450 | 100–600 | 150–750 | 200–950 | 170–970 | 180–980 |
| Gantry Width | mm | 700 | 700 | 1200 | 1300 | 1500 | 1520 | 1850 |
| Table Specification | ||||||||
| Table Size | mm | 600 × 500 | 800 × 600 | 1000 × 1000 | 1200 × 820 | 1700 × 1200 | 2100 × 1200 | 2700 × 1500 |
| T-slot Size | mm | 5 × 14 | 5 × 14 | 7 × 14 | 7 × 14 | 7 × 22 | 7 × 22 | 7 × 22 |
| Maximum Bearing Capacity | kg | 300 | 400 | 600 | 1000 | 3500 | 5000 | 6000 |
| Spindle Specification | ||||||||
| Spindle Speed | rpm | 12000 / 15000 / 20000 / 24000 / 27000 / 30000 / 36000 / 40000 / 60000 | ||||||
| Spindle Specification | — | BT40 / HSK | ||||||
| Spindle Motor Power | kW | 7.5 / 11 / 15 / 18 / 22 | ||||||
| Transmission Mode | — | Direct Connection / Built-in | ||||||
| Tool Magazine | ||||||||
| Tool Magazine Capacity | T | 8 / 12 / 16 / 24 / 30 / 40 / 60 | ||||||
| Feed | ||||||||
| X/Y/Z Rapid Traverse | m/min | 15 / 15 / 15 | 24 / 24 / 24 | 18 / 18 / 18 | ||||
| X/Y/Z Cutting Feed | m/min | 12 | ||||||
| Precision | ||||||||
| Positioning Accuracy | mm | 0.005 | ||||||
| Repeatability | mm | 0.003 | ||||||
| Machine Specification | ||||||||
| Machine Size | m | 2.7 × 2.1 × 2.4 | 2.1 × 2.1 × 2.55 | 3 × 2.5 × 2.8 | 3.8 × 3 × 3 | 5 × 3.2 × 4.2 | 5.6 × 3.5 × 4.5 | 7.14 × 4.2 × 4.58 |
| Machine Weight | T | 4 | 5 | 6 | 10 | 16 | 22 | 26 |
