Graphite Machining Centers
Created with Pixso. G2000 Graphite CNC Milling Machine

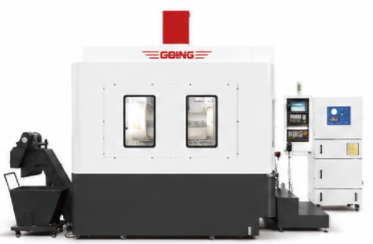

G2000 Graphite CNC Milling Machine
  • Name
  • Name

G2000 Graphite CNC Milling Machine

Brand Name: GOING
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Travel:
X‑axis 2000 mm, Y‑axis 1500 mm, Z‑axis 800 mm
Worktable:
2100×1200 mm, Max Load 5000 kg
Structure & Protection:
Extra‑heavy‑duty Monolithic Gantry With Full Thick Casting; Integrated Motor‑screw Base. Multi‑stack Overlapping Dust‑proof Covers For Full Transmission System, Handling Massive Dust From Extra‑large Workpieces. Heavy‑industrial Dust‑collector Supports Non
Application:
Graphite Electrodes, Large Wind‑power & New‑energy Composite Structural Parts, Big Silicon‑carbide Components; One‑off & Low‑volume Production For Heavy‑equipment Molds
Highlight:

G2000 graphite CNC mill

,

CNC milling machine for graphite

,

graphite machining center with warranty

Product Description

G2000 Graphite CNC Milling Machine

  1. G2000 extra‑large graphite CNC milling machine with 2100×1200 mm worktable and 5000 kg max payload.
  2. Extra‑heavy‑duty thick‑cast monolithic gantry guarantees cutting rigidity under ultra‑long travel.
  3. Multi‑stack overlapping dust‑proof covers handle huge dust volume from giant workpieces.
  4. Heavy‑industrial dust‑collector system is widely applied for wind‑power /new‑energy giant composite parts and large graphite electrodes.

Technical parameter

Item Specification
Model G2000
X‑axis Travel 2000 mm
Y‑axis Travel 1500 mm
Z‑axis Travel 800 mm
Spindle End‑Face To Table Surface 170-970 mm
Worktable Size(X×Y) 2100×1200 mm
Max Table Load 5000 kg
T‑slot 7*22
Rapid Feed X/Y/Z 18/18/18 m/min
Max Cutting Feed 12 m/min
Positioning Accuracy 0.005 mm
Repeated Positioning Accuracy 0.003 mm
Machine Dimension 5.6*3.5*4.5 m
Machine Weight 22T
