Graphite Machining Centers
Created with Pixso. G2500 Graphite CNC Milling Machine

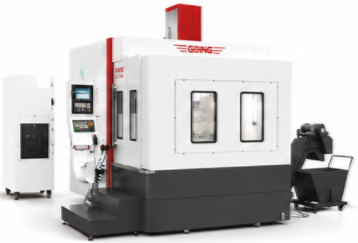

G2500 Graphite CNC Milling Machine
  • Name
  • Name

G2500 Graphite CNC Milling Machine

Brand Name: GOING
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Travel:
X‑axis 2500 mm, Y‑axis 1800 mm, Z‑axis 900 mm
Worktable:
2700×1500 mm, Max Load 6000 kg
Structure & Protection:
Extra‑heavy Monolithic Gantry With Fully Thick Cast Bed, Cross‑beam & Column; Integrated Motor‑screw Base. Complete Multi‑stage Overlapping Dust‑proof Covers. Production‑line‑grade High‑flow Heavy‑duty Dust‑collector Supports Long‑term Dry‑cut Operation
Application:
Oversized Graphite Mold Blanks, Large Silicon‑carbide Structural Components, Extra‑large Wind‑power New‑energy Composite Parts; Low‑volume Manufacturing For Super‑large Heavy‑duty Mold Components
Highlight:

G2500 graphite CNC milling machine

,

graphite machining center with CNC

,

CNC milling machine for graphite

Product Description

G2500 Graphite CNC Milling Machine

  1. G2500 giant‑travel graphite CNC milling machine equipped with extra‑wide 2700×1500 mm worktable and 6000 kg ultimate payload.
  2. Extra‑heavy monolithic gantry with fully‑thick cast bed, cross‑beam and column guarantees heavy‑cut rigidity under giant travel range.
  3. Multi‑stage overlapping dust‑proof covers isolate massive processing dust.
  4. Production‑line‑grade dust‑collector supports long‑term dry‑cut for super‑large components in heavy‑industry and wind‑power sectors.

Technical parameter

Item Specification
Model G2500
X‑axis Travel 2500 mm
Y‑axis Travel 1800 mm
Z‑axis Travel 900 mm
Spindle End‑Face To Table Surface 180-980 mm
Worktable Size(X×Y) 2700×1500 mm
Max Table Load 6000 kg
T‑slot 7*22
Rapid Feed X/Y/Z 18/18/18 m/min
Max Cutting Feed 12 m/min
Positioning Accuracy 0.005 mm
Repeated Positioning Accuracy 0.003 mm
Machine Dimension 7.14*4.2*4.58 m
Machine Weight 26T
