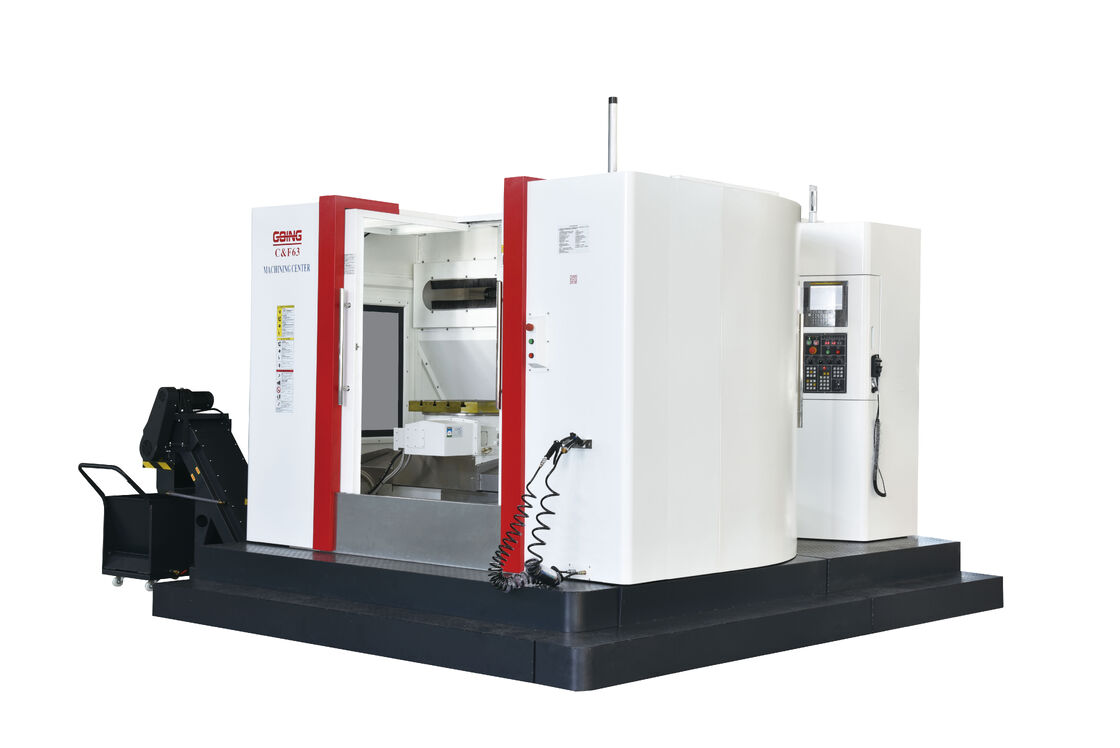

Horizontal machining center
Technical parameter
| Specification | Unit | CF1000 | CF1200 | CF1800 | CF500 | CF63 | CF80 |
|---|---|---|---|---|---|---|---|
| Processing Range | |||||||
| X-axis Travel | mm | 1000 | 1200 | 1800 | 1000 | 1100 | 1600 |
| Y-axis Travel | mm | 750 | 900 | 1400 | 650 | 800 | 1000 |
| Z-axis Travel | mm | 600 | 700 | 900 | 600 | 1100 | 1000 |
| Distance from Spindle Center to Working Surface | mm | 180–570 | 150–1050 | 30–1430 | 40–610 | 50–850 | 50–950 |
| Distance from Spindle Nose to Working Surface | mm | 90–690 | 150–850 | 200–1100 | 200–800 | 125–1225 | 180–1180 |
| Table Specification | |||||||
| Table Size – X Direction | mm | 700 | 1360 | 2000 | 500 | 630 | 800 |
| Table Size – Y Direction | mm | 630 | 700 | 900 | 500 | 630 | 800 |
| Number of Worktables | pc | 1 | 1 | 1 | 1 | 1 | 1 |
| T-slot Size | mm | 6–18 × 100 | 5–18 × 152 | 5–22 × 165 | 5–18 × 100 | 5–18 × 100 | 7–20 × 100 |
| Table Indexing | — | 0.01° / 0.001° | 0.01° / 0.001° | 0.01° / 0.001° | 0.01° / 0.001° | 0.01° / 0.001° | 0.01° / 0.001° |
| Maximum Load Capacity | kg | 600 | 1000 | 1600 | 600 | 800 | 1500 |
| Main Spindle Specifications | |||||||
| Spindle Speed | rpm | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Spindle Motor Power | kW | 15 / 18.5 | 15 / 18.5 | 15 / 18.5 | 11 / 15 | 15 / 18.5 | 15 / 18.5 |
| Spindle Specification | — | BT50 | BT50 | BT50 | BT50 | BT50 | BT50 |
| Transmission Mode | — | Belt Type | Belt Type | Belt Type | Belt Type | Belt Type | Belt Type |
| Screw / Guideway Specifications | |||||||
| X/Y/Z Ball Screw Specification | mm | 4012 / 5010 / 4012 | 5010 / 5010 / 5010 | 5512 / 5010 / 5512 | 4012 / 4012 / 4012 | 5010 / 5010 / 5010 | 5512 / 5512 / 5512 |
| X/Y/Z Guideway Specification | mm | 45 / 45 / 55 | 55 / 45 / 45 | 55 / 45 / 45 | 45 / 45 / 45 | 55 / 45 / 45 | 55 / 45 / 45 |
| Feed | |||||||
| X/Y/Z Rapid Traverse | m/min | 24 / 24 / 24 | 24 / 12 / 24 | 24 / 12 / 24 | 24 / 12 / 24 | 24 / 24 / 24 | 12 / 10 / 10 |
| X/Y/Z Axis Motor Specification | Nm | 16 / 16 / 16 | 16 / 18 / 20 | 26 / 30 / 30 | 40 / 40 / 40 | 40 / 40 / 40 | 30 / 40 / 50 |
| Machine Specification | |||||||
| Machine Dimensions | mm | 3600 × 2800 × 3000 | 3900 × 3100 × 2900 | 4500 × 3400 × 3200 | 3600 × 3100 × 2800 | 4420 × 3300 × 3000 | 4900 × 3500 × 3200 |
| Machine Weight | T | 10 | 14 | 16 | 8 | 11 | 17 |
