| Brand Name: | GOING |

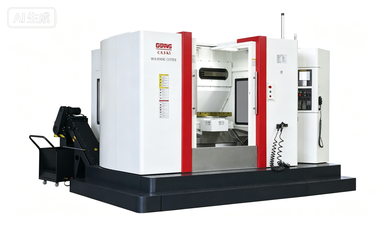

CF1800 Horizontal Machining Center
Technical parameter
| Item | Specification |
|---|---|
| Model | CF1800 |
| X-axis Travel | 1800 mm |
| Y-axis Travel | 1400 mm |
| Z-axis Travel | 900 mm |
| Spindle Center To Table Surface | 30-1430 mm |
| Spindle Nose To Table Center | 200-1100 mm |
| Worktable Size(X×Y) | 2000×900 mm |
| Number Of Worktables | 1 pc |
| Table T-slot | 5-22*165 mm |
| Table Indexing | 0.01° / 0.001° |
| Max Table Load | 1600 kg |
| Ball Screw X/Y/Z | 5512 / 5010 / 5512 mm |
| Linear Guide X/Y/Z | 55 / 45 / 45 mm |
| Rapid Feed X/Y/Z | 24 / 12 / 24 m/min |
| Servo Motor Torque X/Y/Z | 26 / 30 / 30 Nm |
| Spindle Taper | BT50 |
| Spindle Max Speed | 6000 rpm |
| Spindle Motor Power | 15/18.5 kW |
| Transmission Type | Belt type |
| Machine Overall Dimension | 4500×3400×3200 mm |
| Machine Weight | 16 T |
