| Brand Name: | GOING |

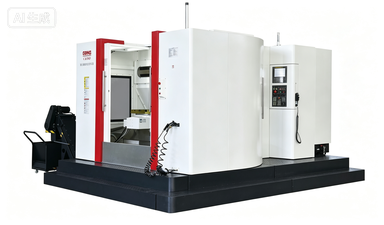

CF1200 Horizontal Machining Center
Technical parameter
| Item | Specification |
|---|---|
| Model | CF1200 |
| X-axis Travel | 1200 mm |
| Y-axis Travel | 900 mm |
| Z-axis Travel | 700 mm |
| Spindle Center To Table Surface | 150-1050 mm |
| Spindle Nose To Table Center | 150-850 mm |
| Worktable Size(X×Y) | 1360×700 mm |
| Number Of Worktables | 1 pc |
| Table T-slot | 5-18*152 mm |
| Table Indexing | 0.01° / 0.001° |
| Max Table Load | 1000 kg |
| Ball Screw X/Y/Z | 5010 / 5010 / 5010 mm |
| Linear Guide X/Y/Z | 55 / 45 / 45 mm |
| Rapid Feed X/Y/Z | 24 / 12 / 24 m/min |
| Servo Motor Torque X/Y/Z | 16 / 18 / 20 Nm |
| Spindle Taper | BT50 |
| Spindle Max Speed | 6000 rpm |
| Spindle Motor Power | 15/18.5 kW |
| Transmission Type | Belt type |
| Machine Overall Dimension | 3900×3100×2900 mm |
| Machine Weight | 14 T |
