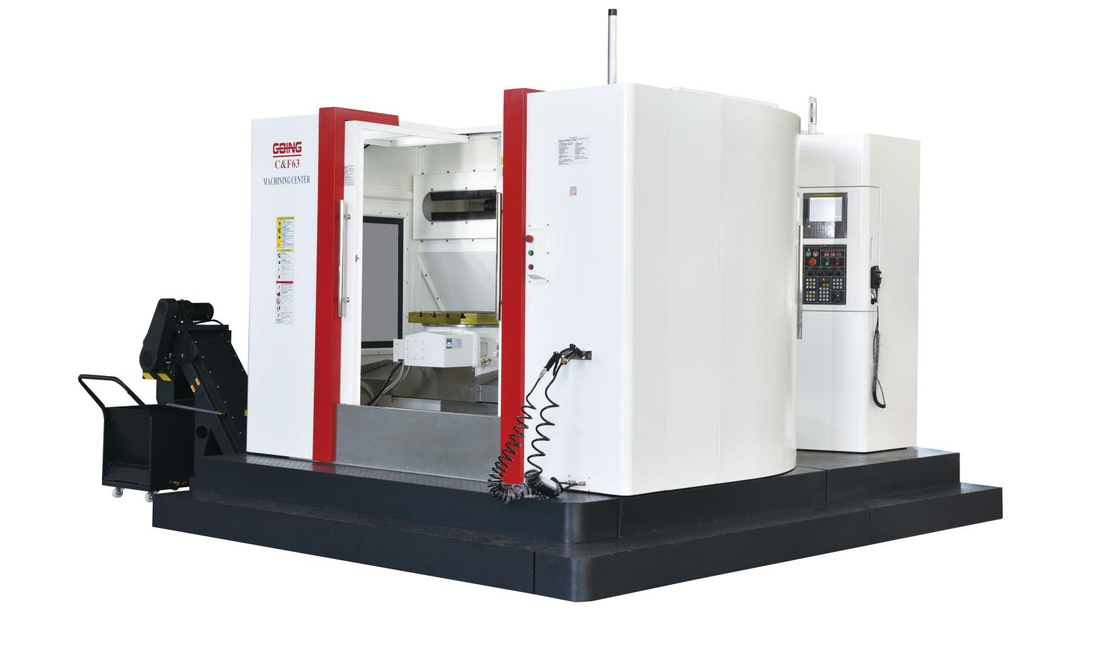

CF500 Horizontal Machining Center
Technical parameter
| Item | Specification |
|---|---|
| Model | CF500 |
| X‑axis Travel | 1000 mm |
| Y‑axis Travel | 650 mm |
| Z‑axis Travel | 600 mm |
| Spindle Center To Table Surface | 40‑610 mm |
| Spindle Nose To Table Center | 200‑800 mm |
| Worktable Size(X×Y) | 500×500 mm |
| Number Of Worktables | 1 pc |
| Table T‑slot | 5‑18*100 mm |
| Table Indexing | 0.01° / 0.001° |
| Max Table Load | 600 kg |
| Ball Screw X/Y/Z | 4012 / 4012 / 4012 mm |
| Linear Guide X/Y/Z | 45 / 45 / 45 mm |
| Rapid Feed X/Y/Z | 24 / 12 / 24 m/min |
| Servo Motor Torque X/Y/Z | 40 / 40 / 40 Nm |
| Spindle Taper | BT50 |
| Spindle Max Speed | 6000 rpm |
| Spindle Motor Power | 11/15 kW |
| Transmission Type | Belt type |
| Machine Overall Dimension | 3600×3100×2800 mm |
| Machine Weight | 8 T |
