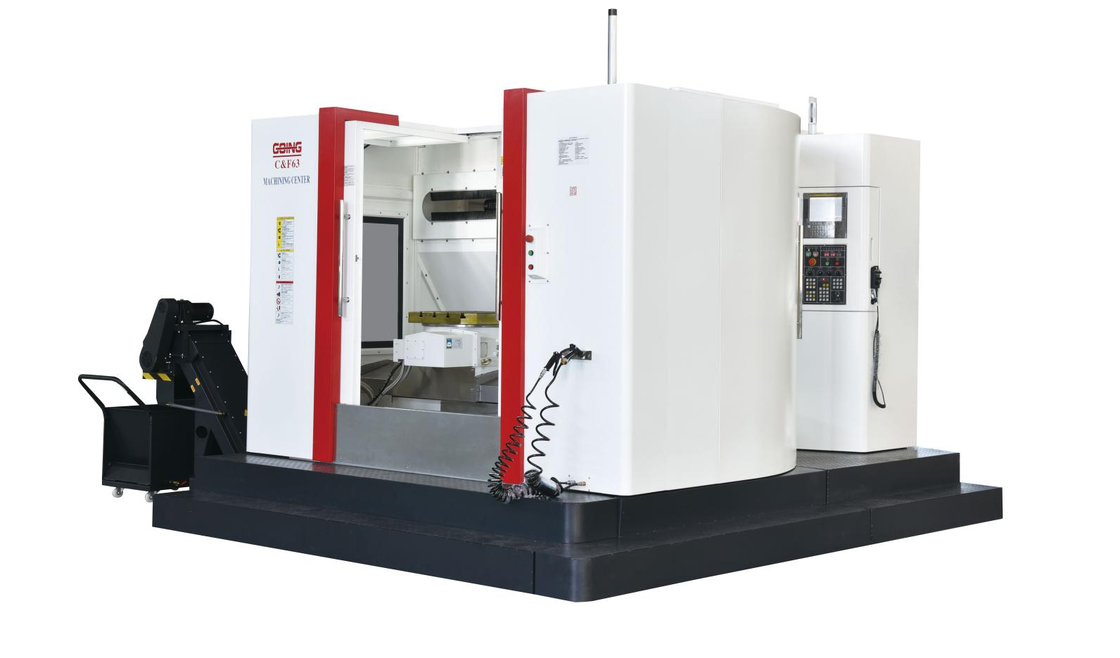

CF63 Horizontal Machining Center
Technical parameter
| Item | Specification |
|---|---|
| Model | CF63 |
| X‑axis Travel | 1100 mm |
| Y‑axis Travel | 800 mm |
| Z‑axis Travel | 1100 mm |
| Spindle Center To Table Surface | 50‑850 mm |
| Spindle Nose To Table Center | 125‑1225 mm |
| Worktable Size(X×Y) | 630×630 mm |
| Number Of Worktables | 1 pc |
| Table T‑slot | 5‑18*100 mm |
| Table Indexing | 0.01° / 0.001° |
| Max Table Load | 800 kg |
| Ball Screw X/Y/Z | 5010 / 5010 / 5010 mm |
| Linear Guide X/Y/Z | 55 / 45 / 45 mm |
| Rapid Feed X/Y/Z | 24 / 24 / 24 m/min |
| Servo Motor Torque X/Y/Z | 40 / 40 / 40 Nm |
| Spindle Taper | BT50 |
| Spindle Max Speed | 6000 rpm |
| Spindle Motor Power | 15/18.5 kW |
| Transmission Type | Belt type |
| Machine Overall Dimension | 4420×3300×3000 mm |
| Machine Weight | 11 T |
