| Brand Name: | GOING |

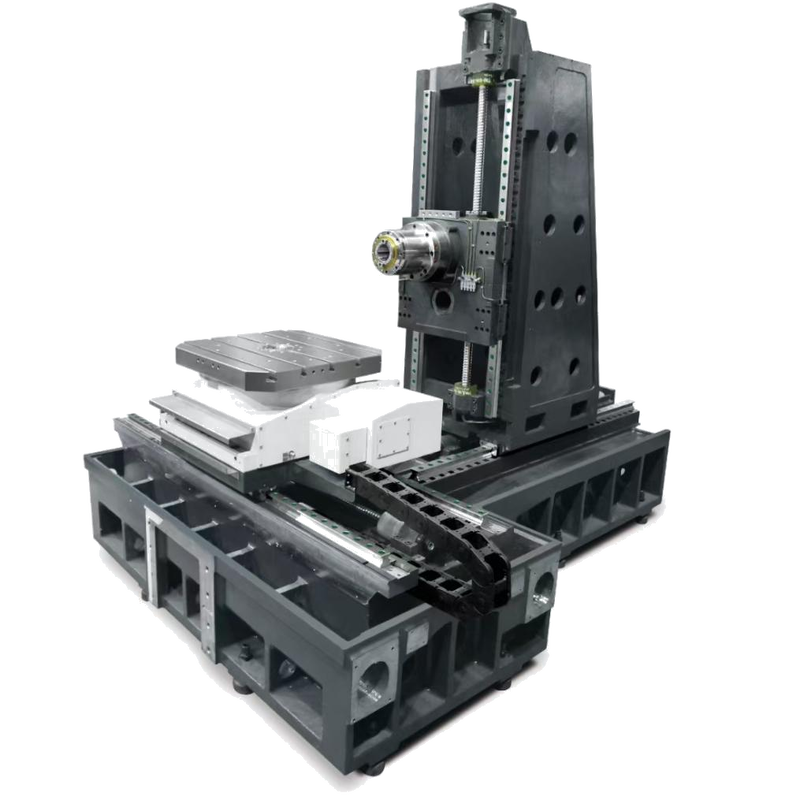

CF80 Horizontal Machining Center
Technical parameter
| Item | Specification |
|---|---|
| Model | CF80 |
| X-axis Travel | 1600 mm |
| Y-axis Travel | 1000 mm |
| Z-axis Travel | 1000 mm |
| Spindle Center To Table Surface | 50-950 mm |
| Spindle Nose To Table Center | 180-1180 mm |
| Worktable Size(X×Y) | 800×800 mm |
| Number Of Worktables | 1 pc |
| Table T-slot | 7-20*100 mm |
| Table Indexing | 0.01° / 0.001° |
| Max Table Load | 1500 kg |
| Ball Screw X/Y/Z | 5512 / 5512 / 5512 mm |
| Linear Guide X/Y/Z | 55 / 45 / 45 mm |
| Rapid Feed X/Y/Z | 12 / 10 / 10 m/min |
| Servo Motor Torque X/Y/Z | Not Specified |
| Spindle Taper | BT50 |
| Spindle Max Speed | 6000 rpm |
| Spindle Motor Power | 15/18.5 kW |
| Transmission Type | Belt type |
| Machine Overall Dimension | 4900×3500×3200 mm |
| Machine Weight | 17 T |
