| Brand Name: | GOING |

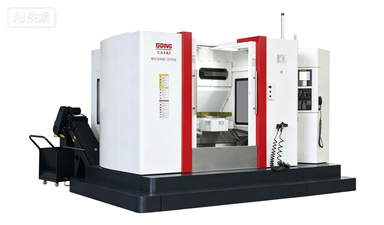

CF1000 Horizontal Machining Center
Technical parameter
| Item | Specification |
|---|---|
| Model | CF1000 |
| X-axis Travel | 1000 mm |
| Y-axis Travel | 750 mm |
| Z-axis Travel | 600 mm |
| Spindle Center To Table Surface | 180-570 mm |
| Spindle Nose To Table Center | 90-690 mm |
| Worktable Size(X×Y) | 700×630 mm |
| Number Of Worktables | 1 pc |
| Table T-slot | 6-18*100 mm |
| Table Indexing | 0.01° / 0.001° |
| Max Table Load | 600 kg |
| Ball Screw X/Y/Z | 4012 / 5010 / 4012 mm |
| Linear Guide X/Y/Z | 45 / 45 / 55 mm |
| Rapid Feed X/Y/Z | 24 / 24 / 24 m/min |
| Servo Motor Torque X/Y/Z | 16 / 16 / 16 Nm |
| Spindle Taper | BT50 |
| Spindle Max Speed | 6000 rpm |
| Spindle Motor Power | 15/18.5 kW |
| Transmission Type | Belt type |
| Machine Overall Dimension | 3600×2800×3000 mm |
| Machine Weight | 10 T |
