| Brand Name: | GOING |

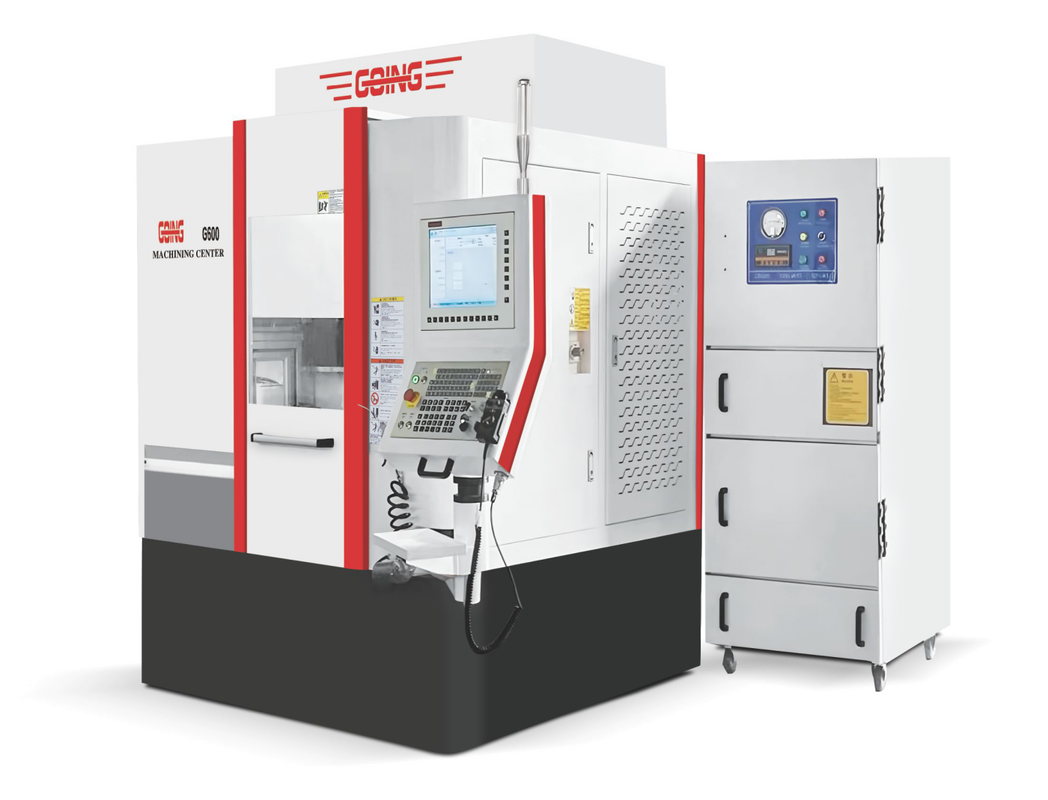

G600 Graphite CNC Milling Machine
Technical parameter
| Item | Specification |
|---|---|
| Model | G600 |
| X‑axis Travel | 600 mm |
| Y‑axis Travel | 500 mm |
| Z‑axis Travel | 250 mm |
| Spindle End‑Face To Table Surface | 100‑350 mm |
| Worktable Size(X×Y) | 600×500 mm |
| Max Table Load | 300 kg |
| T‑slot | 5*14mm |
| Rapid Feed X/Y/Z | 15/15/15 m/min |
| Max Cutting Feed | 12 m/min |
| Positioning Accuracy | 0.005mm |
| Repeated Positioning Accuracy | 0.003mm |
| Machine Dimension | 2.7*2.1*2.4m |
| Machine Weight | 4T |
