| Brand Name: | GOING |

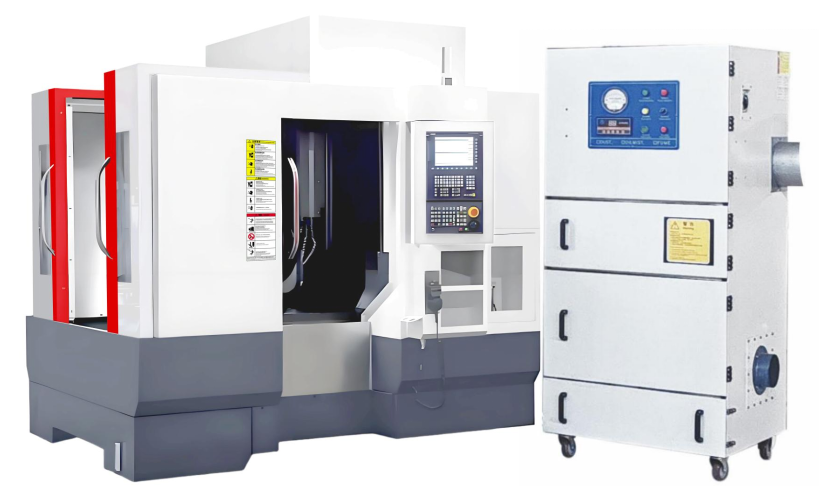

G800 Graphite CNC Milling Machine
Technical parameter
| Item | Specification |
|---|---|
| Model | G800 |
| X‑axis Travel | 600 mm |
| Y‑axis Travel | 800 mm |
| Z‑axis Travel | 350 mm |
| Spindle End‑Face To Table Surface | 100‑450 mm |
| Worktable Size(X×Y) | 800×600 mm |
| Max Table Load | 400 kg |
| T‑slot | 5*14 |
| Rapid Feed X/Y/Z | 15/15/15 m/min |
| Max Cutting Feed | 12 m/min |
| Positioning Accuracy | 0.005mm |
| Repeated Positioning Accuracy | 0.003mm |
| Machine Dimension | 2.1*2.1*2.55m |
| Machine Weight | 5T |
