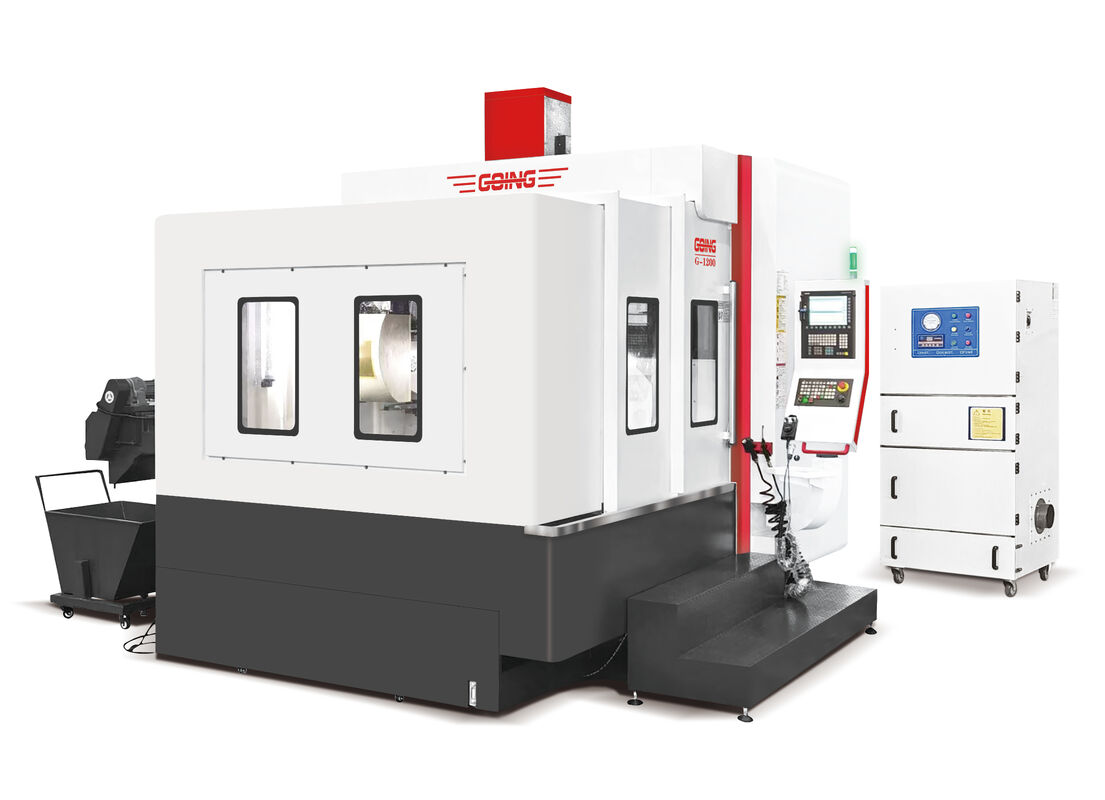

G1200 Graphite CNC Milling Machine
Technical parameter
| Item | Specification |
|---|---|
| Model | G1200 |
| X‑axis Travel | 1200 mm |
| Y‑axis Travel | 1000 mm |
| Z‑axis Travel | 600 mm |
| Spindle End‑Face To Table Surface | 150-750 mm |
| Worktable Size(X×Y) | 1200×820 mm |
| Max Table Load | 1000 kg |
| T‑slot | 7*14 |
| Rapid Feed X/Y/Z | 24/24/24 m/min |
| Max Cutting Feed | 12 m/min |
| Positioning Accuracy | 0.005 mm |
| Repeated Positioning Accuracy | 0.003 mm |
| Machine Dimension | 3.8*3*3m |
| Machine Weight | 10T |
