Graphite Machining Centers
Created with Pixso. G1600 Graphite CNC Milling Machine

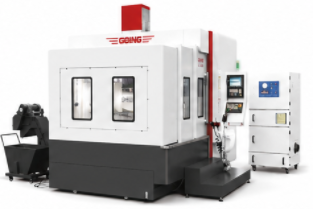

G1600 Graphite CNC Milling Machine
  • Name
  • Name

G1600 Graphite CNC Milling Machine

Brand Name: GOING
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Travel:
X‑axis 1600 mm, Y‑axis 1400 mm, Z‑axis 750 mm
Worktable:
1700×1200 mm, Max Load 3500 kg
Structure & Protection:
Heavy‑duty Monolithic Gantry With Widened Thick Cross‑beam And Wide‑span Bed For Heavy‑load Rigidity; Integrated Motor‑screw Casting. Overlapping Dust‑proof Covers Handle Massive Dust Output From Large Workpieces. Industrial High‑flow Dust Collector As Sta
Application:
Large Graphite Mold Blanks, Big Silicon‑carbide Plates, Large Composite Structural Parts; Mixed One‑off & Batch Production For Heavy‑duty Mold Industry
Highlight:

G1600 graphite CNC milling machine

,

CNC milling machine for graphite

,

graphite machining center with CNC

Product Description

G1600 Graphite CNC Milling Machine

  1. G1600 heavy‑duty large‑travel graphite CNC milling machine is equipped with oversized 1700×1200 mm worktable supporting 3500 kg payload.
  2. Heavy‑duty gantry with widened thick cross‑beam and wide‑span bed ensures rigidity under heavy cutting.
  3. Full overlapping dust‑proof covers resist massive dust from large‑size workpieces.
  4. High‑power heavy‑load spindle performs roughing and complex‑cavity finishing for large mold blanks.
  5. Industrial high‑flow dust collector serves large graphite mold blanks, silicon‑carbide plates and oversized composite components.

Technical parameter

Item Specification
Model G1600
X‑axis Travel 1600 mm
Y‑axis Travel 1400 mm
Z‑axis Travel 750 mm
Spindle End‑Face To Table Surface 200-950 mm
Worktable Size(X×Y) 1700×1200 mm
Max Table Load 3500 kg
T‑slot 7*22
Positioning Accuracy 0.005 mm
Repeated Positioning Accuracy 0.003 mm
Machine Dimension 5*3.2*4.2m
Machine Weight 16T
